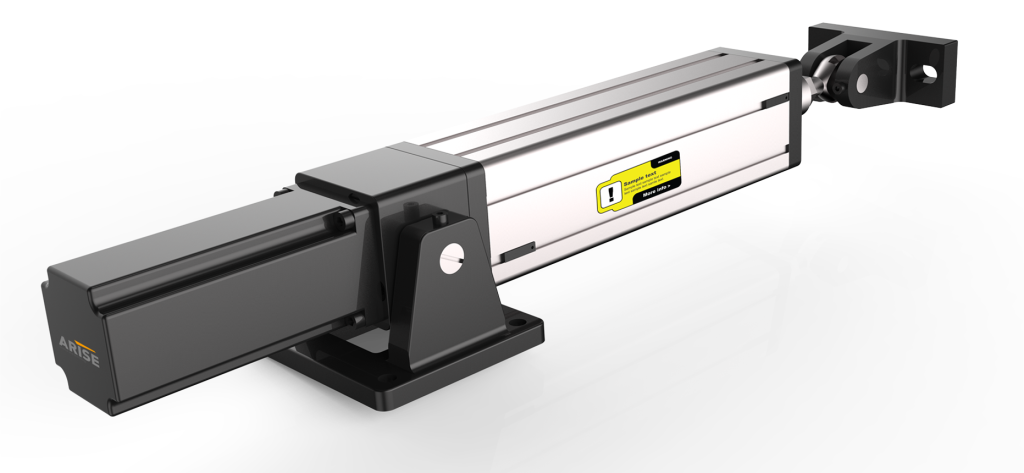

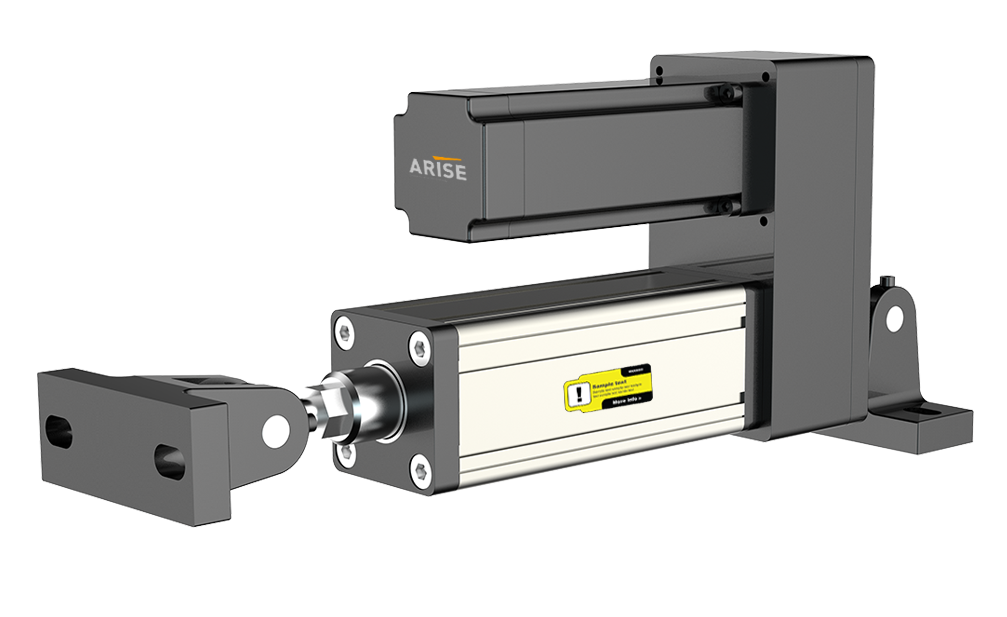

SE-150S/200S/300S/75S/50S Web Guide Actuator
- Adopting imported stepping motor, without carbon brush
- Fully reliable and long service life, truly realize long-term maintenance-free during use
- Real-time feedback on the screw position without any centre reture switches.
- Clearance and durability, so that the actuator has no backlash error.
- Left and right limit switches, which can be adjusted externally
- Equipped with 1000-line incremental encoder, speeding up the driving speed while improving the precision
Share to
Advantages of Arise Web Guide Actuator
The web guide actuators feature an imported stepping motor and grinding ball screw, ensuring lifelong maintenance-free operation. It can be customized with various motors, strokes, installation methods, and response speeds to suit different requirements. Equipped with left and right limit switches, which are externally adjustable, this actuator significantly enhances precision while accelerating driving speed.
The Actuator Model utilizes an imported servo motor and grinding ball screw, coupled with a 1000-line incremental encoder, to simultaneously increase driving speed and accuracy. It offers real-time position feedback with a back-to-center switch and can identify mechanical stroke with a single button press.
Technical Data of Web Guide Actuator
| Rated adjusting stroke | Refer to the table as below |
| Rated thrust | Refer to the table as below |
| Rated adjusting speed |
0-40mm/s(1000) 0-30mm/s(2000) 0-15mm/s(3000) 0-10mm/s(5000) |
| Precision | <±0.1mm(Depends on material) |
| Error frequency | Maximum 4Hz |
| Operating voltage Rated value |
24V DC |
| Rated range | 20-30V DC |
| Rated current | 4.5A |
| Ambient temperature | 0~+55℃ |
| Weight | Refer to the table as below |
| Protection grade | IP 54 |
Dimensional Parameters of Web Guide Actuator
| Model number | SE-50S-1T | SE-50S-2T | SE-75S-1T | SE-75S-2T | SE-150S-1T | SE-150S-2T | SE-150S-5T | SE-200S-2T | SE-300S-2T | SE-300S-4T |
| Sroke | 50mm | 50mm | 75mm | 75mm | 50mm | 150mm | 150mm | 200mm | 300mm | 300mm |
| Rated thrust | 1000N | 2000N | 1000N | 2000N | 1000N | 2000N | 5000N | 2000N | 2000N | 4000N |
| Weight | 4.65kg | 4.77kg | 4.57kg | 4.99kg | 5.32kg | 5.62kg | 6.42kg | 5.94kg | 6.7kg | 6.97kg |
| Model number | SE-50L-1T | SE-50L-2T | SE-75L-1T | SE-75L-2T | SE-150L-1T | SE-150L-2T | SE-150L-5T | SE-200L-2T | SE-300L-2T | SE-300L-4T |
| Sroke | 50mm | 50mm | 75mm | 75mm | 50mm | 150mm | 150mm | 200mm | 300mm | 300mm |
| Rated thrust | 1000N | 2000N | 1000N | 2000N | 1000N | 2000N | 5000N | 2000N | 2000N | 4000N |
| Weight | 4.52kg | 4.64kg | 4.44kg | 4.86kg | 5.19kg | 5.48kg | 5.93kg | 5.60kg | 6.57kg | 6.84kg |
