• Surface Inspection Systems for Packaging Bags

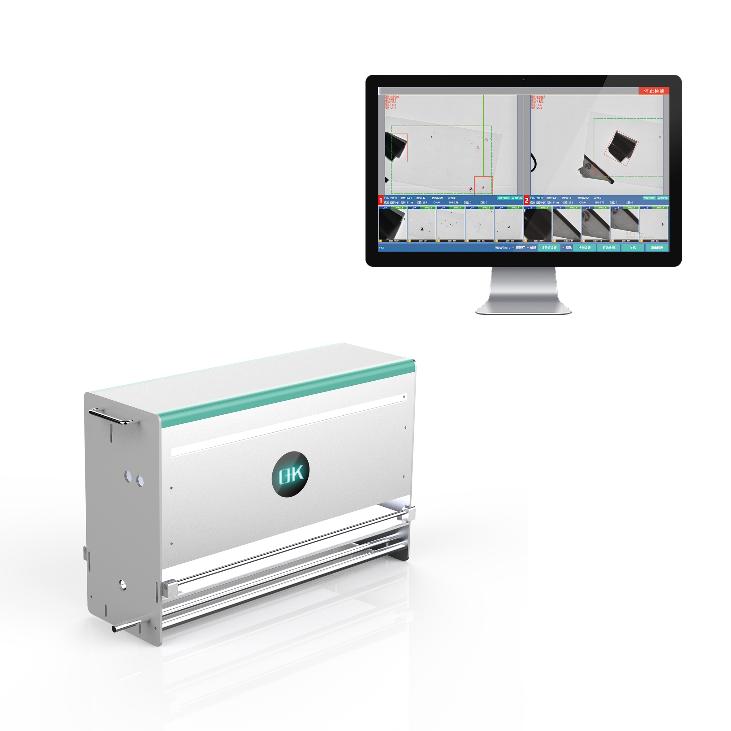

OK-1000A Quality Inspection Systems for Bag Making Machines

  • High-Precision Detection: Utilizes a Gigabit Ethernet industrial area scan camera with a shooting range of 200mm x 600mm, capable of accurately detecting small defects such as insects and foreign objects in transparent packaging bags to ensure product quality.
  • Real-Time Image Display: The system provides real-time image display, highlighting detected defects and showing defect size, allowing operators to quickly identify issues.
  • Intelligent Algorithm Processing: Equipped with advanced image processing algorithms, the system quickly classifies OK and NG images. It supports customizable minimum defect area and grayscale values, adapting to various inspection needs.
  • Multiple Trigger Modes: Supports both automatic capture and external signal triggering, allowing users to flexibly choose based on production requirements and ensuring synchronized inspection with the production process.
  • Easy Operation: Features a user-friendly interface with intuitive settings, enabling quick configuration of camera parameters, inspection areas, and alarm settings, making it easy to use.
  • High Stability: Designed for industrial environments with a wide input voltage range (85–264VAC) and grounding protection to ensure stable operation.
  • Data Storage & Analysis: Supports automatic saving of OK/NG images for quality traceability and analysis, helping enterprises optimize production processes.
  • Strong Compatibility: Seamlessly integrates with various machinery, making it suitable for online inspection in industries such as transparent packaging bags, with strong scalability and adaptability.
Share to

Key Functions of the OK-1000A Quality Inspection System for Bag Making Machines

The OK-1000A type quality inspection systems for bag making machine uses a 200mm x 600mm ultra-large shooting range, which can easily cover the bag surface, detect without blind spots, and accurately identify defects such as tiny mosquitoes, hair, and metal chips. Using deep learning algorithms, the system continuously improves its performance. It is widely applicable to various materials and specifications of bag-making machines, including those for food packaging bags, pharmaceutical packaging bags, and daily chemical product packaging bags.

System Configuration of OK-1000A Quality Inspection System for Bag Making Machines

  • OK–1000A Industrial Area Scan Camera, dedicated for print inspection.
  • RX3050 Industrial PC with Dedicated Graphics Card, enhances algorithm processing speed.
  • High–Definition, Distortion–Free Lens.
  • Integrated Light Source Design, Easy installation.

Product Model: OK–1000A

Technical Parameters of OK-1000A Quality Inspection System for Bag Making Machines

SubjectParameter
Nominal lateral resolution0.2mm
Nominal vertical resolution0.15mm
Detection range200×600mm
Detection speed300p/ min
Defect detection area0.2mm²
Defect typeForeign matter such as mosquitoes, hair, fibers, etc, defects such as stains, scratches, holes, etc.

Note: Accurate precision can only be calculated based on the actual material width and running speed.
