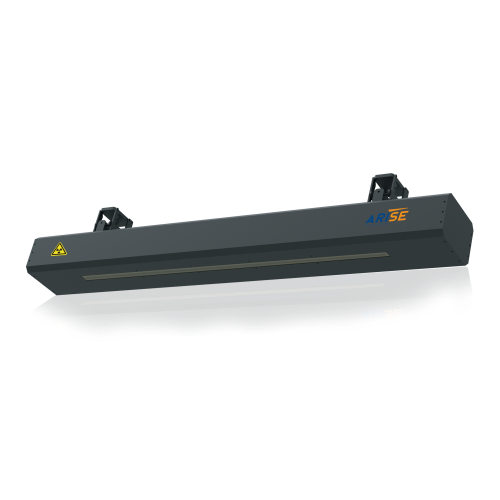

Laser Marking Device
- Equipped with a position control system to ensure accurate positioning during the forming process.
- Adjusts laser light to maintain system error within 0.2 mm.
- Supports multiple communication interface options for flexibility.
- Provides a high-brightness laser beam for clear marking.
Share to
Understanding the Basics of Laser Marking Device
Laser marking device is a professional tool for precise marking and positioning in tire forming machines, featuring fast response speed, high precision, and rapid positioning control, allowing easy installation of an external adjustment mechanism.

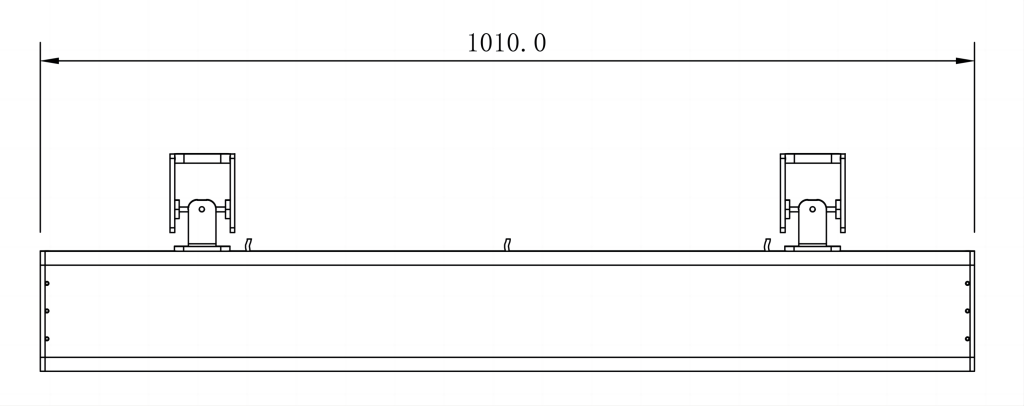

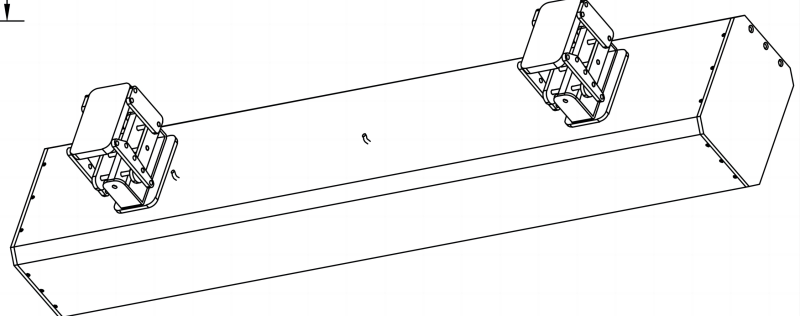

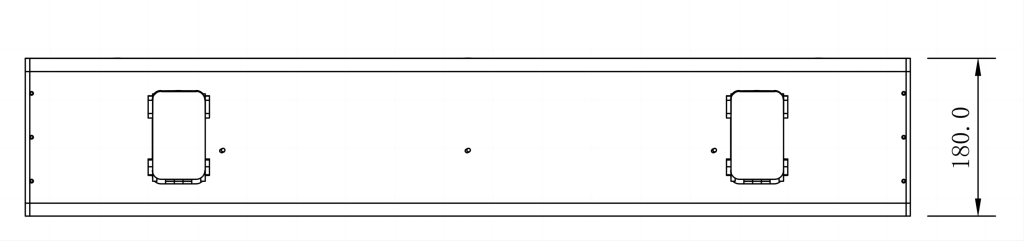

Dimensional Parameters of Laser Marking Device
| Supply Voltage | DC24V/3A |
| Laser Wavelength | 635nm red |
| Output Power | 2mw/1mw |
| Laser Line Length | ≥2.2m at 1.8m distance |
| Laser Line Width | ≤0.5mm (at 1.8m distance) |
| Line Curvature | ≤0.2mm (at 1.8m distance) |
| Marking Repeatability | ≤0.2mm (at 1.8m distance) |
| Drive Speed | 100mm/sec |
| Communication Method | MODBUS TCP RS485 |
| Operating Temperature | 0-50℃(non-condensing) |
| Protection grade | IP54 |
