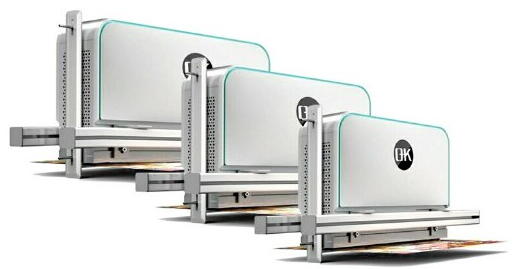

• 100% print inspection system
  • 100% Print Inspection System for Label Detection

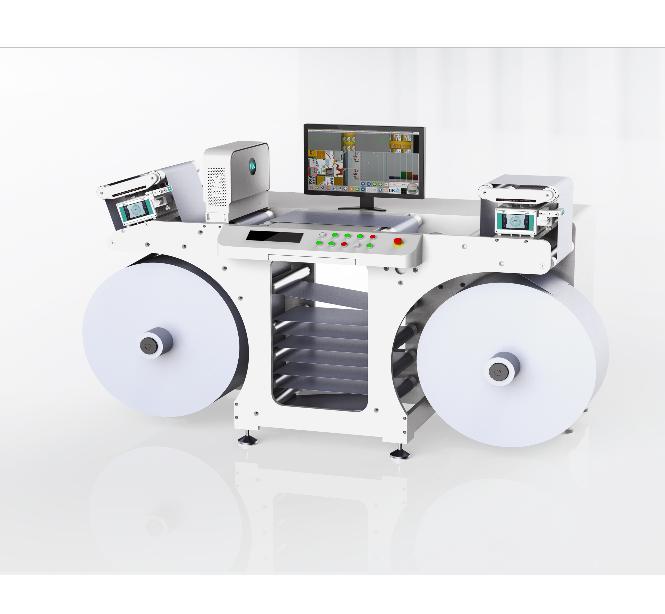

  • 100% Printing Inspection System for Label Detection

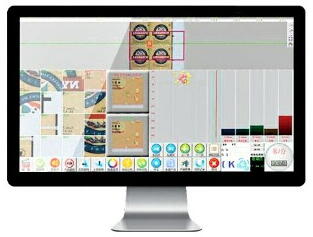

  • 100% Print Defect Inspection System for Label Detection

100% Print Inspection System for Label Detection

  • — It combines high-precision full-width inspection with seamless workflow integration.
  • — The modular design allows customers to customize the system to meet specific needs.
  • — A special contour light source enhances contrast between transparent labels and backing paper.
  • — The 100% printing inspection system delivers reliable detection performance on transparent, non-transparent, and even white backings.
  • — The type of print inspection system supports easy switching between normal and contour light sources.
Share to

What is the OK-4000 Type 100% Print Inspection System for Label Detection

The OK-4000 type 100% printing inspection system provides full-width observation of print defects for missing label detection, particularly on blank labels and waste rejection detection. The system is simple to operate, with on-site installation support.

Technical Parameters of 100% Print Inspection System for Label Detection

SubjectParameter
Nominal lateral resolution0.15mm
Nominal vertical resolution (see remark)0.15mm
Designed detection width10mm-600mm
Designed maximum speed (see remark)450m/min
Dot Defect detection accuracyDefect Area>0.2mm²
knife line detection accuracyDefect Area>0.1mm*5mm
Registration detection accuracyLateral >0.15 mm, Longitudinal> 0.25 mm
