S1000 Web Guide Controller
- Designed for tracking material edges, tracking lines, and contrast.
- Suitable for material take-up, unwinding, and intermediate guidance automatic control.
- Detects signals using ultrasonic, infrared, and CCD sensors.
- Calculates material deviation and drives the servo motor with encoder feedback.
Share to
Why Choose S1000 Web Guide Controller
The high-performance S1000 type web guide controller is used for edge tracking and provides precise correction of deviated material, with full touch screen operation. It is crucial in the tire industry, through improving the precision and efficiency of tire manufacturing, reducing defective product rates and enhancing tire quality and performance.

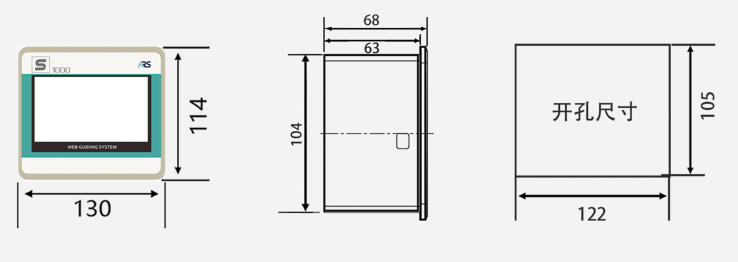

Dimensional Parameters of S1000 Web Guide Controller
| Operating voltage (Rated value) | 24V DC | Dimension（Housing） | 130×115×63mm | Actuator interface（data exchange） | φ16 |
| (Rated range) | ±1% | （Hole size） | 122×105mm | 4-core, 6-core | |
| Power consumption | 4A-8A | Electric eye interface （Edge） | 2×M6 electric eye | Protection grade | IP54 |
| Ambient temperature | 0-50℃（non – condensing） | （Linear） | 1×M8 electric | Weight | 0.79kg |
