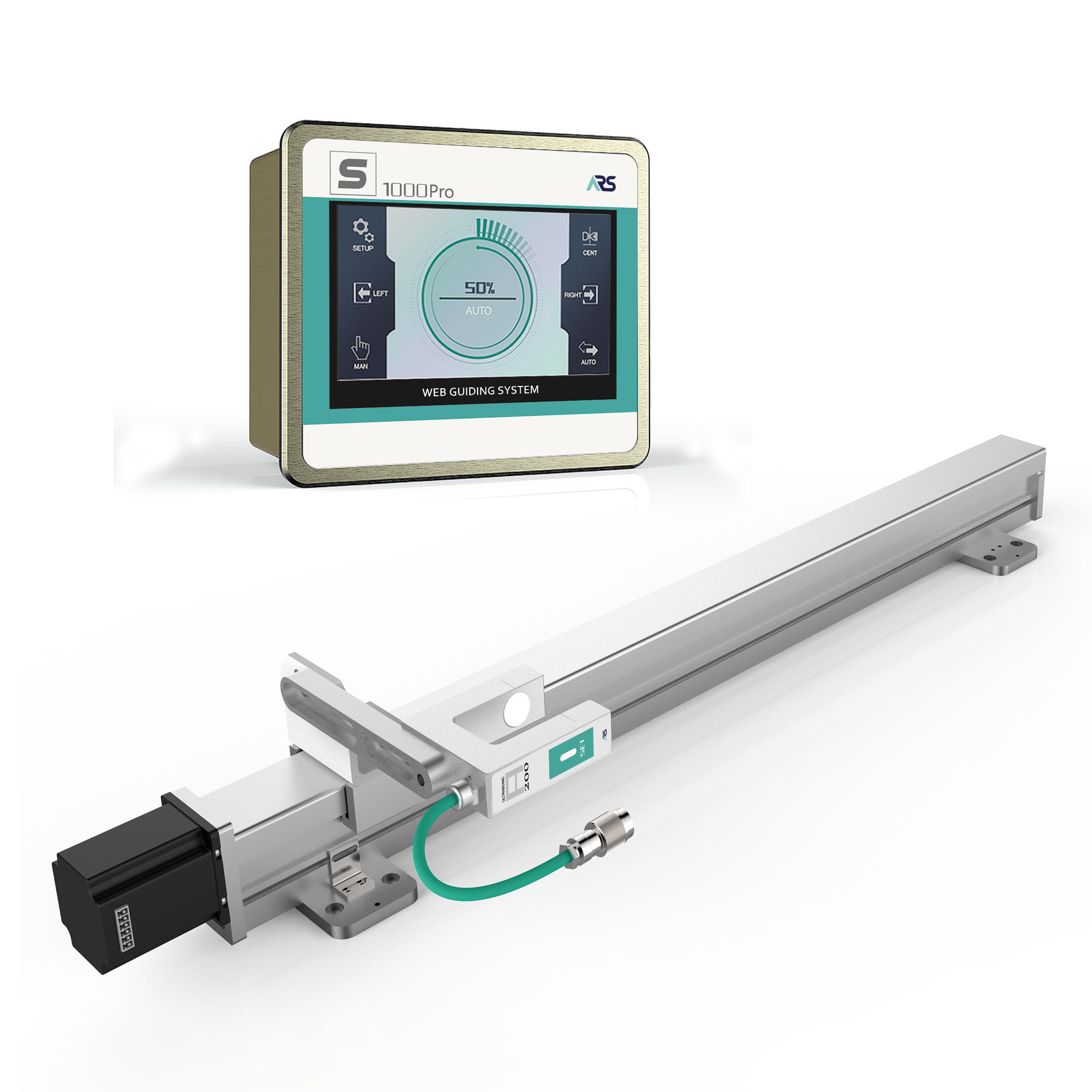

What is S1000Pro Web Guide Controller
The S1000 type web guide controller is designed for tracking material edges, lines, and contrast and adopts ultrasonic, infrared, or CCD sensors for detecting materials. It drives the servo motor with encoder feedback for precise correction.

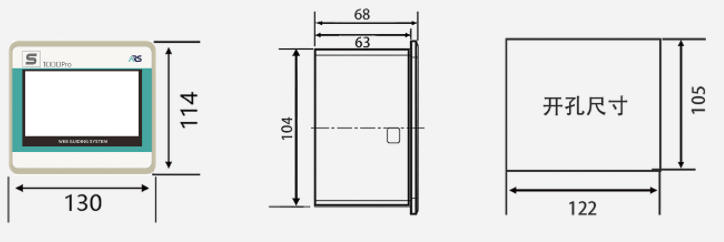

Dimensional Parameters of S1000Pro Web Guide Controller
| Operating voltage (Rated value) | 24V DC | Actuator interface | φ16 | Dimension (Housing) | 130×114×68mm |
| Power Consumption | 4A-8A | 4-core,6-core | (Hole size) | 122×105mm | |
| Ambient temperature | 0-50℃(non-condensing) | Protection grade | IP54 | Communication | Communication connection |
| Weight | 0.79kg | Electric eye interface(Edge) | 2xM6 electric eye | on the guide rail | |
| Guide rail | 300-1000mm | (Linear) | 1xM8 electric eye |
