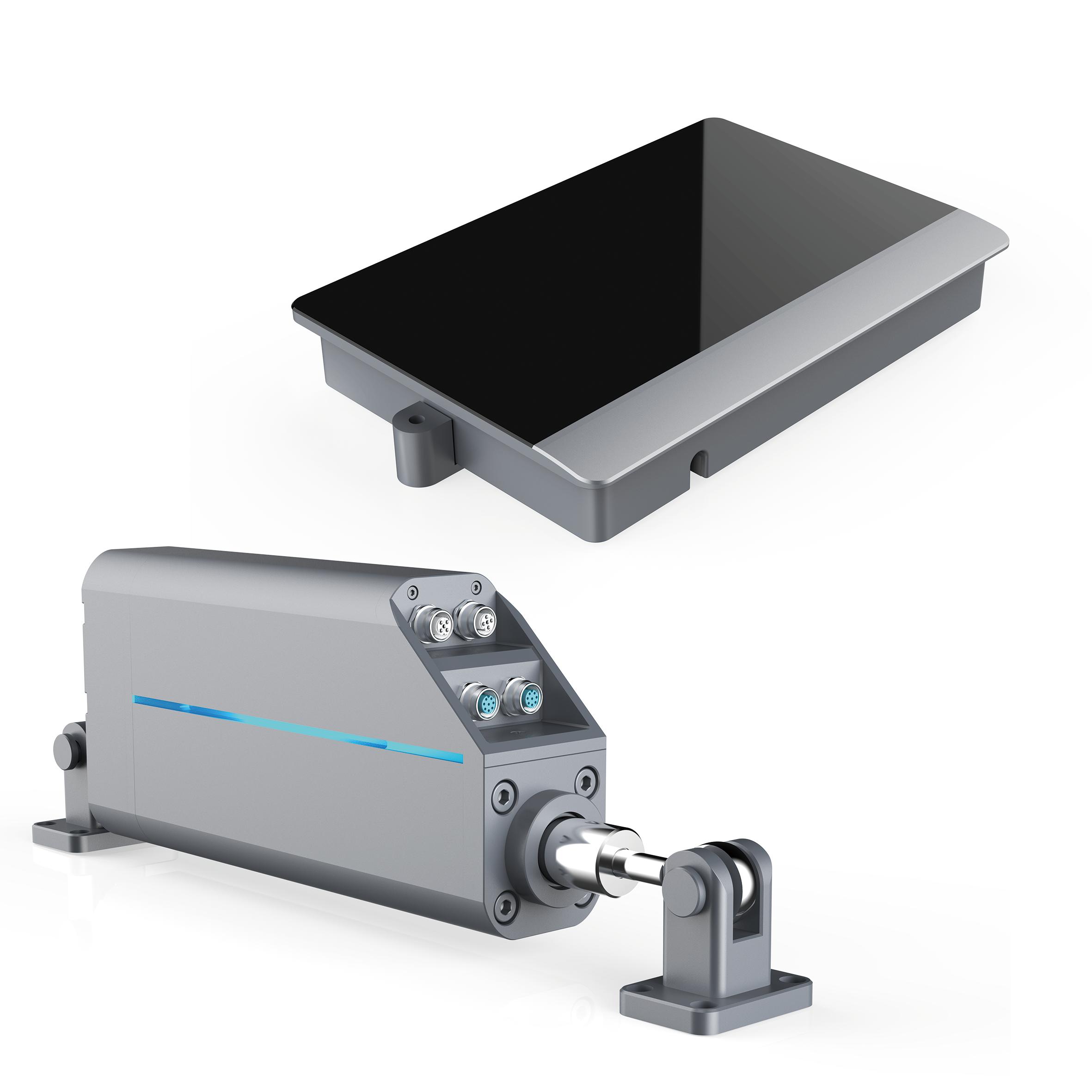

S2000 Web Guide Controller
- Adopts advanced sensor technology and sophisticated control algorithms.
- Monitors and corrects material position deviations to ensure product precision and quality.
- Operates at speeds of up to 1200 m/min, suitable for high-speed production lines.
- Supports multiple communication interfaces for easy integration with other equipment and systems.
- Enables comprehensive production line control and automation.
Share to
Understanding the Basics of S2000 Web Guide Controller
The S2000 type web guide controller is designed to correct deviations and misalignments of materials during production or processing, with sophisticated control algorithms for high-speed, high-accuracy response. It provides flexible control features with adjustable parameters for different materials and processes.
Dimensional Parameters of S2000 Web Guide Controller
| Operating voltage(Rated value) | 36V DC | Dimension ( Display housing) | 139.5×96.3×22mm | Actuator interface(data exchange) | φ12 |
| (Rated range) | ±1% | Electric eye interface(Edge) | 2xM6 electric eye | 3-core/4-core/ | |
| Power consumption | 4A-8A | (Linear) | 1xM8 electric eye | 8-core/10-core | |
| Ambient temperature | 0-50℃(non-condensing) | Protection grade | IP54 |
