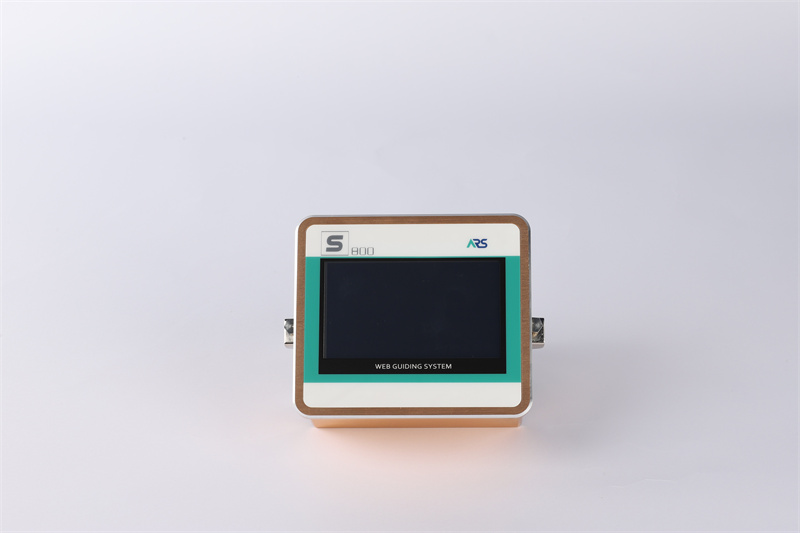

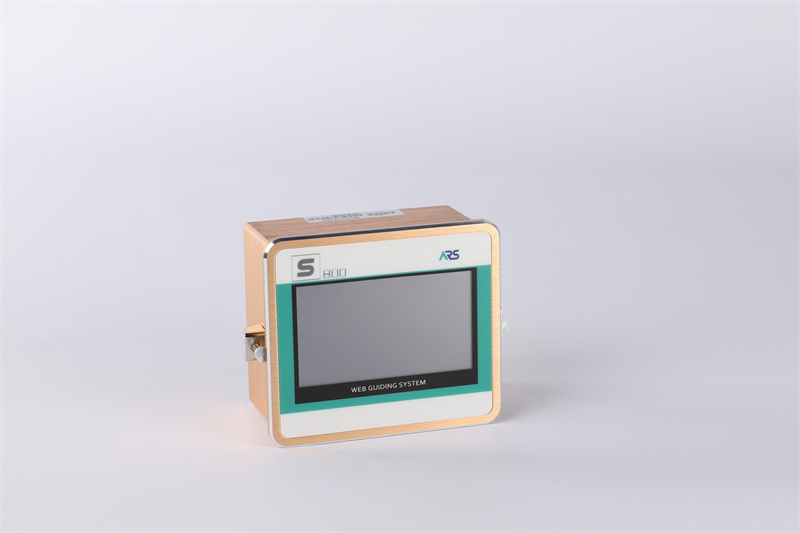

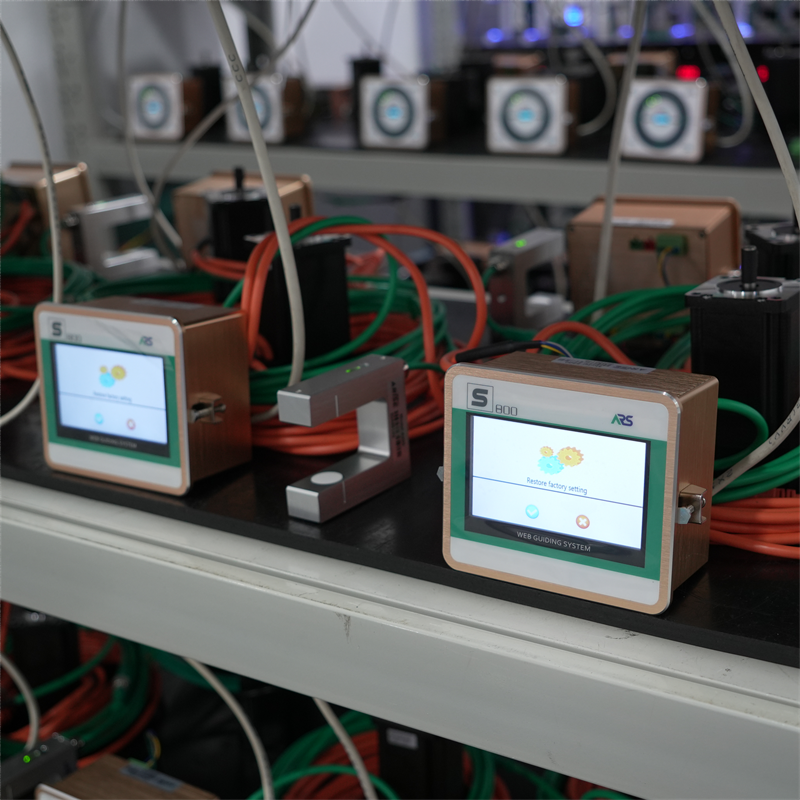

S800 Web Guide Controller

  • CPU adopts South Korea’s Samsung Cortex-A9 quad-core processor, with a working frequency of up to 1.2GHz
  • 16-bit imported high-precision AD sampling chip with 1us sampling time, the sensor signal is much more stable
  • Full touch screen made by South Korean Samsung, stand by multi-lingual
  • The control adopts the latest fuzzy PID algorithm control from the United States, and any material automatically adapts to the optimal parameters.
  • Fuzzy recognition with free balance adjustment system
  • Dynamic recognition system for coiled materials which imitates human eyes

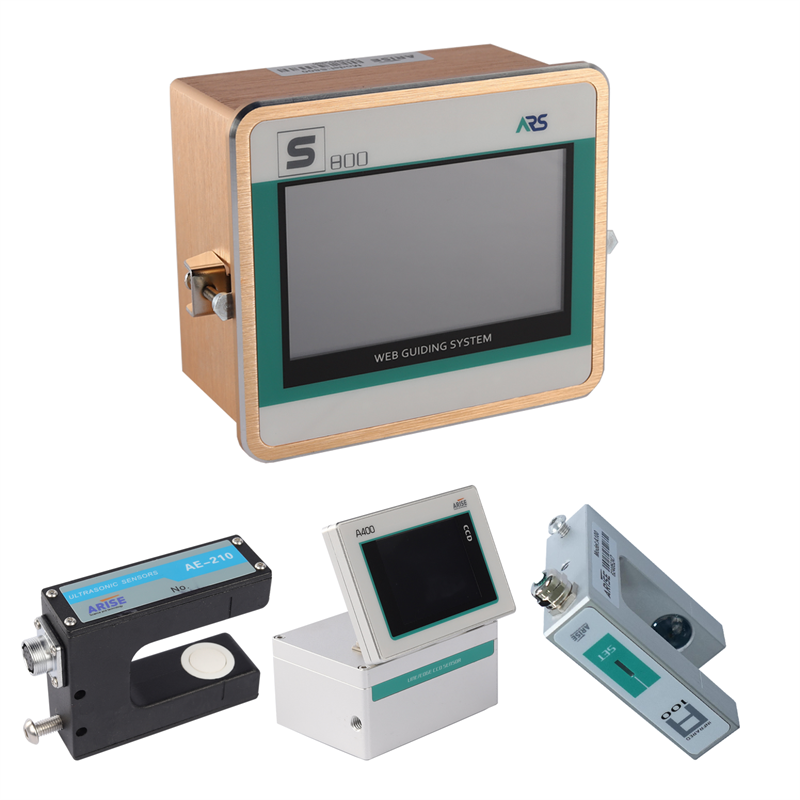

  • Can be connected to single/double ultrasonic sensors, photoelectric sensors, CCD sensors
  • Adopts titanium alloy wire drawing shell, high strength, with stronger corrosion resistance and interference resistance
  • The electronic commutation is maintenance-free, and the commutation has higher safety without sparks.
Share to

What is S800 Web Guide Controller

The S800, a high-performance servo web guiding controller, boasts full-touch screen operation. Specifically designed for tracking material edges and lines, it excels in automatic control of material rewinding, unwinding, and center guiding. Upon detecting signals through ultrasonic, infrared, or CCD sensors, the controller swiftly calculates the material’s offset. Subsequently, it precisely corrects the offset material by driving the servo motor and utilizing encoder feedback to align with the calculated results.

Dimensional Parameters of S800 Web Guide Controller

Operating voltage Rated value 24V  DC
Electricity  consumption  4A-8A
Ambient temperature 0-50°C((non-condensing)
Dimension Housing 130×114×68mm
Hole size 122×105mm
Electric eye interface Edge electric eye  2xM6 electric eye
Linear electric eye 1xM8 electric eye
Actuator  interface φ16
4 core, 6 core
Protection  grade IP54
Weight 0.79kg
specificarions of S800 web guide controller

Application Videos of S800 Web Guide Controller

S800 200 for packaging
all in one web guide for paper handling S800-160

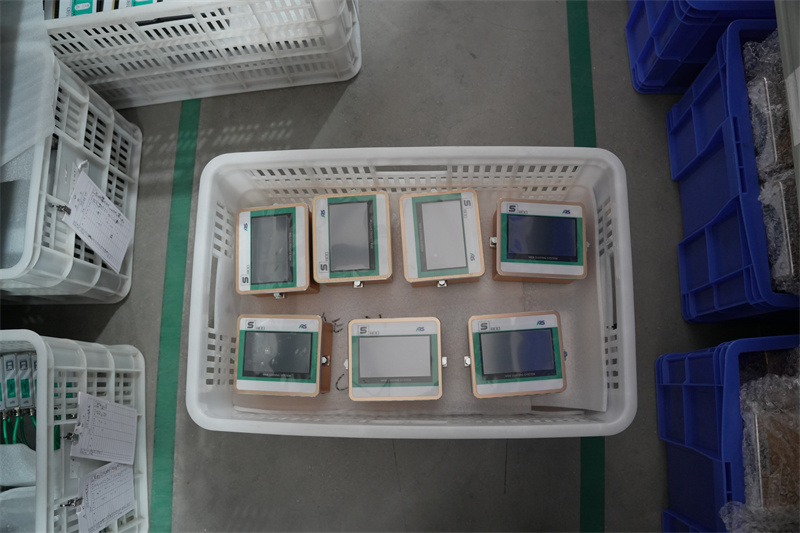

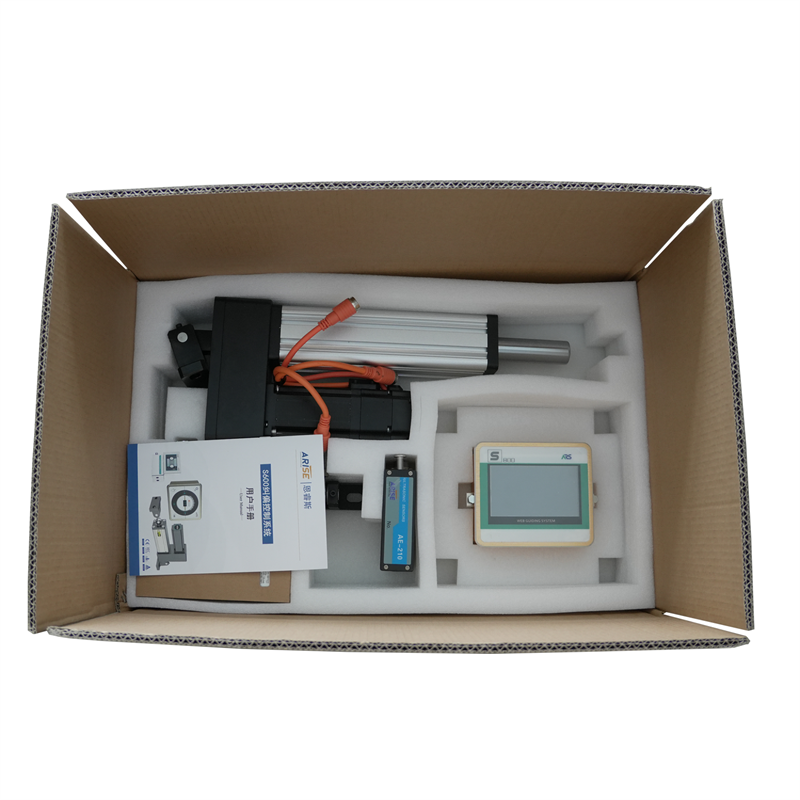

Packaging of S800 Web Guide Controller
