S600 Web Guiding Controller

  • CPU adopts 64-bit dual-core (FPGA+ARM), working frequency up to 168MHz
  • The motor drive adopts FPGA drive (no need for external capacitor resistance commutation, no need to replace carbon brush, high performance far exceeding traditional DC motor)
  • 16-bit imported high-precision AD sampling chip with 1us sampling time and the sensor signal is much more stable.
  • 260,000-color TFT LCD Screen
  • Graphical multi-level menu for convenient operation
  • Using the fuzzy adaptive PID Control and any material is adaptive.

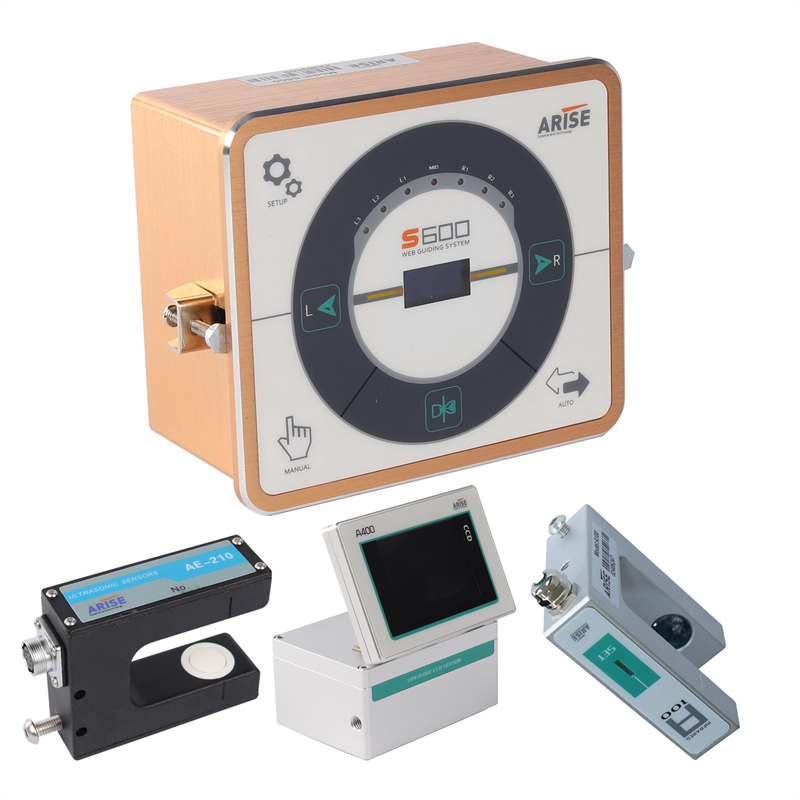

  • The universal sensor interface can be connected to single/dual photoelectric eyes, ultrasonic sensors, and CCD sensors.
  • With metal shell, strong anti-interference
Share to

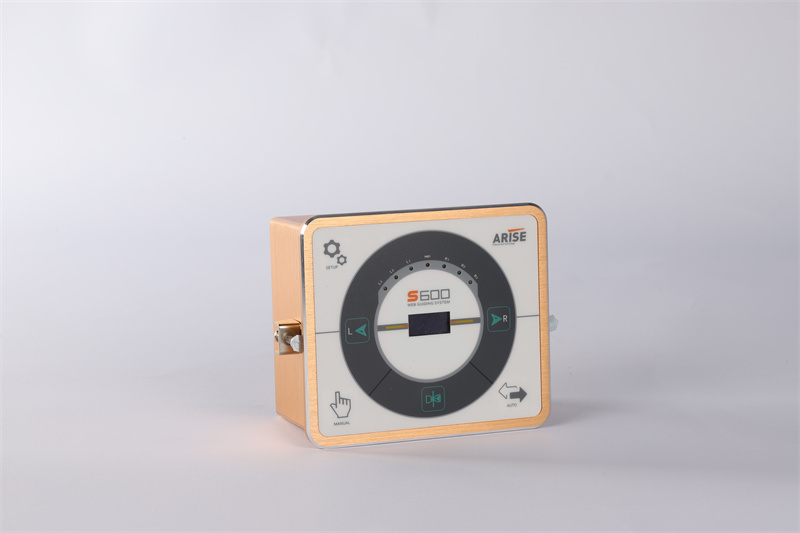

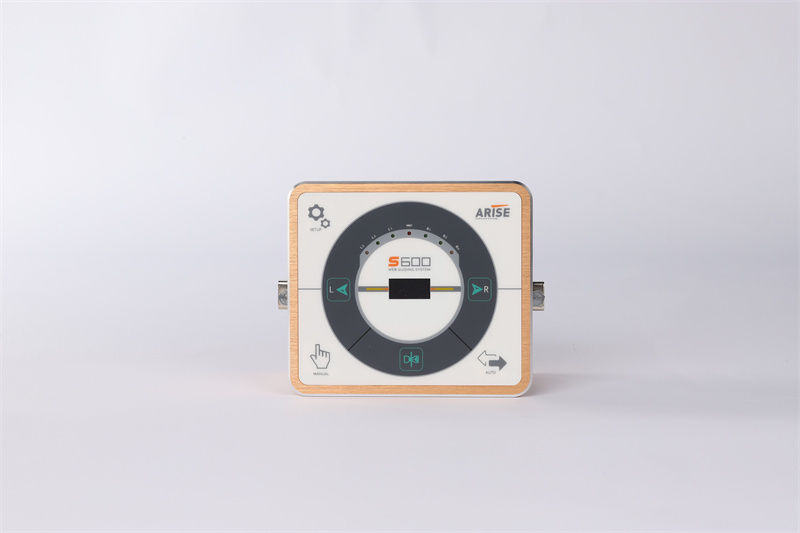

The Basic Introduction of the S600 Web Guide Controller

S600 is a high-performance servo web guiding controller that uses a 64-bit dual-core processor and can directly drive a servo motor with an encoder.It has simple button operation and a more intuitive arc curve display.

Dimensional Parameters of S600 Web Guide Controller

Operating voltage Rated value 24V  DC
Rates range ±1%
Electricity  consumption 3-4A
Ambient temperature 0-40℃((non-condensing)
Dimension Housing  142x112x68mm
Hole size 122x105mm
Electric eye interface Edge electric eye 2xM6 electric eye
Linear electric eye  1xM6 electric eye
Actuator  interface Data exchange φ16
Protection  grade IP54
Weight 0.64kg

specificarions of S600 web guide controller

Application Videos of S600 Web Guiding Controller

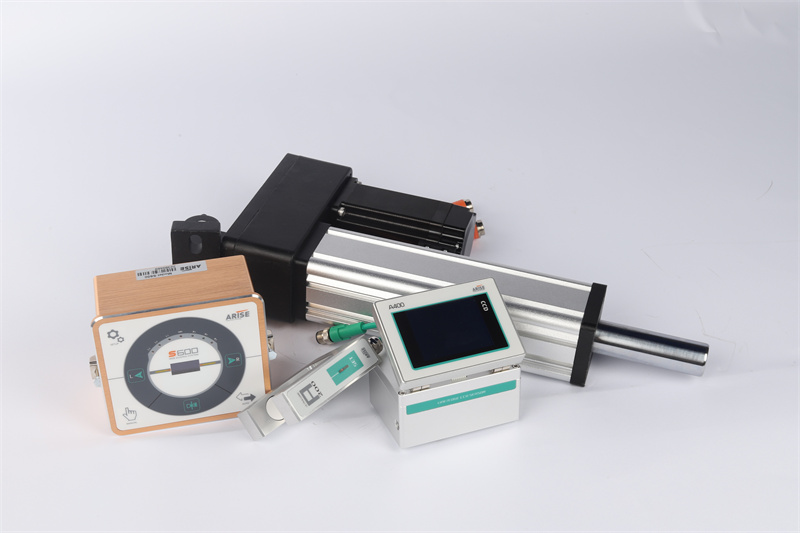

S600 with A400 CCD sensor for line guide system on slitting machine
S600 web guide system for packaging industry

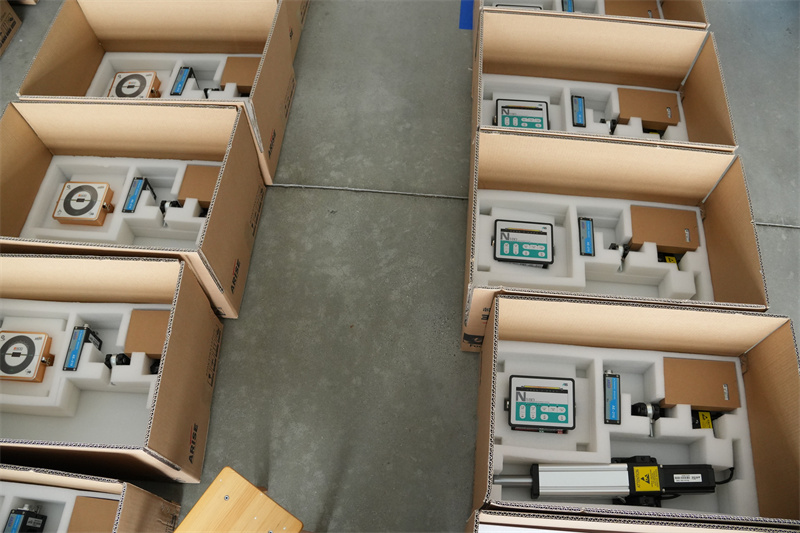

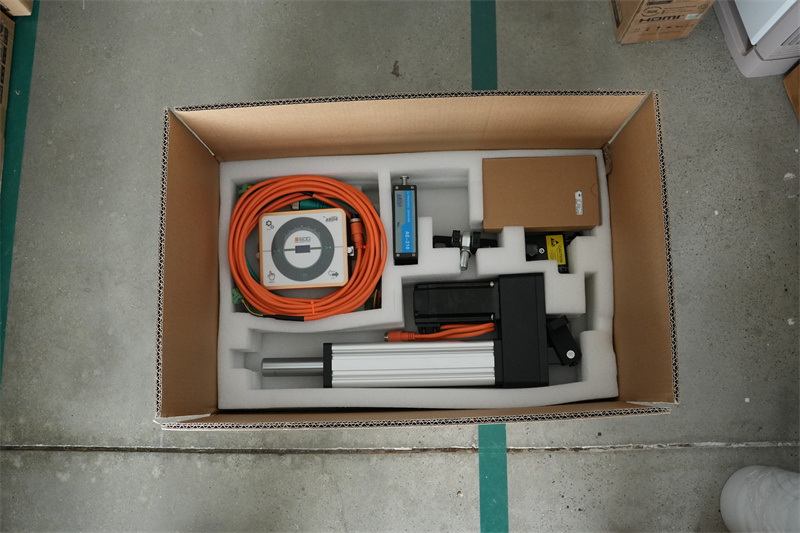

Packaging of S600 Web Guiding Controller
