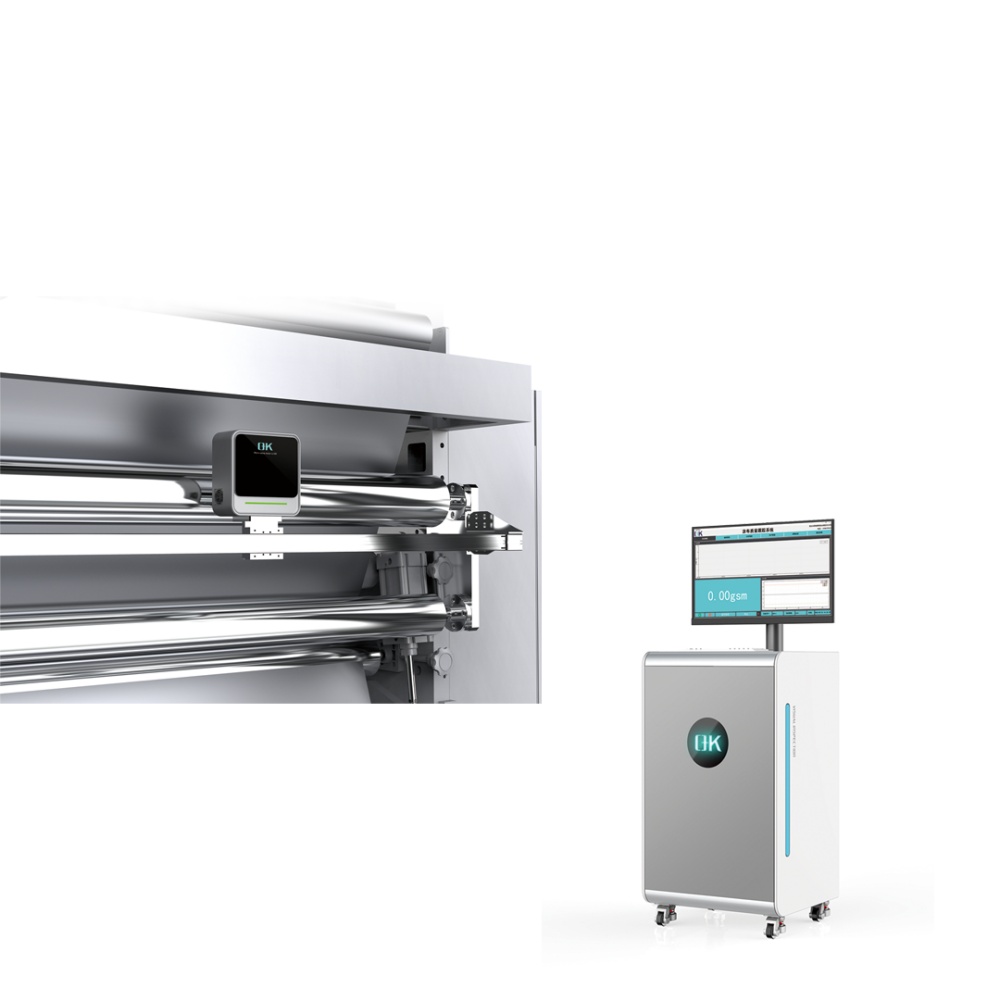

CTS 3.0 Coating Quality Tracking System
- Unaffected by substrate and ink
- Detects glue content only
- Equipped with an electric cruise guide rail
- Full-width transverse scanning system
- Database tracking and recording
- Microwave Radar
- Coating weight calculation
- Coating abnormality alarm system
- Historical data query
Understanding the Functions of CTS 3.0 Coating Quality Tracking System
The CTS 3.0 coating quality tracking system is specifically designed for coating and laminating production lines. Utilizing the next-generation online non-contact measurement technology of the CV3oo micrometer-wave radar, it can accurately monitor adhesive coating amount and thickness in real time, enabling end-to-end quality tracking and stable control from production to finished product. This helps companies improve quality, reduce waste, and optimize production efficiency. Employing high-precision sensing and algorithm technology, it captures changes in adhesive layer weight and thickness in real time, offering fast response, high accuracy, and strong stability. It is compatible with various adhesives, including solvent-free, solvent-based, and water-based adhesives,and can accurately detect even ultra-thin coatings, completely eliminating errors from manual sampling and ensuring consistent product quality for every roll.
Dimensional Parameters of CTS 3.0 Coating Quality Tracking System
| Subject | Parameter |
| Measurement Method | Infrared Absorption System |
| Spectroscopy | Filter System |
| Measuring Distance | 25mm (From the bottom of the main unit) |
| Measuring Area | Reflectance Measurement: 6 × 6mm |
| Probe Dimensions | 200 × 200 × 87mm (L × W × H, Excluding protrusions) |
| Probe Weight | 2.11KG |
| Power Supply | AC 220V, 50/60Hz |
| External Output | Modbus TCP |
| Ambient Temperature | 5~45° C (No condensation) |
| Measuring Accuracy | ± 0.05gsm |
