Web Control Products for Steel Industry

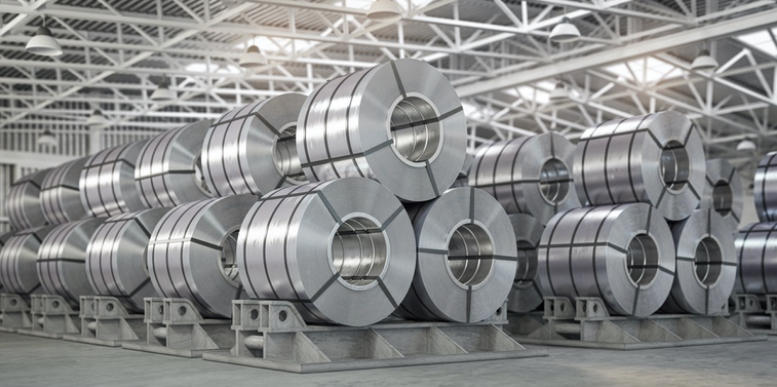

Arise has over two decades of technical expertise in web control, with solutions covering the entire steel industry web processing chain — cold rolling, galvanizing, color coating, pickling, and slitting. Our products are widely used in the production and processing of hot-rolled, cold-rolled, galvanized, color-coated, silicon steel, and stainless steel coils, effectively ensuring web path stability and dimensional accuracy at high speeds, with seamless integration into existing production lines.

Steel coil processing is characterized by high speed, wide web, high tension, and harsh operating conditions. Web wandering, tension fluctuations, and thickness variations on continuous strip lines not only increase scrap rates and downtime but can also cause strip breaks and safety incidents. Arise’s web guiding, tension control, width measurement, and inspection systems effectively reduce waste, stabilize quality, and lower production costs, helping steel manufacturers maintain product quality and operational safety in high-speed continuous production.

Share to

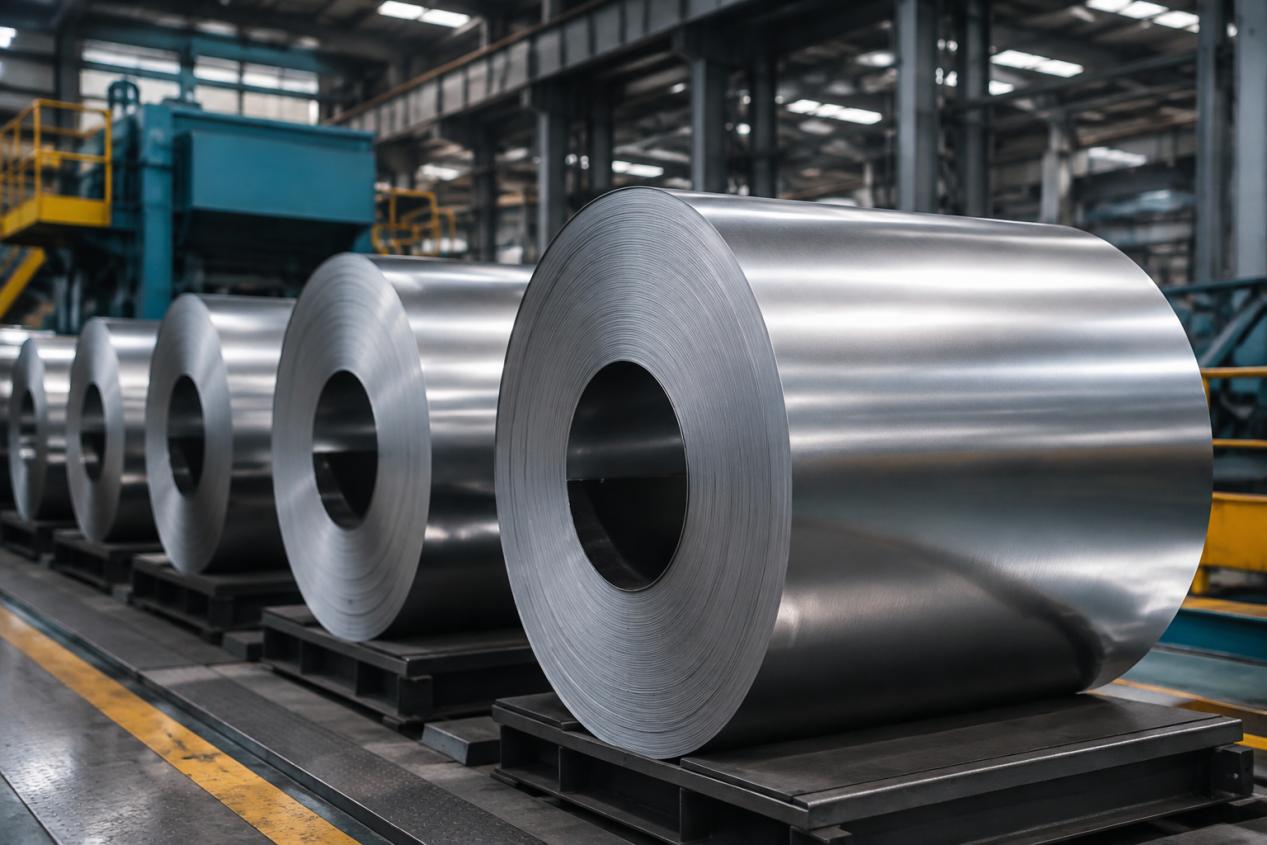

Cold rolling is a critical metal processing stage that reduces hot-rolled strip into thinner and more precise finished products at room temperature. This process requires exceptional control of strip thickness, flatness, and overall material consistency. During rolling, fluctuations in strip tension can lead to uneven thickness, poor strip shape, surface defects, or even strip breakage, affecting production efficiency and product quality.

Arise’s Tension Control System creates a closed-loop tension control process between entry and exit tension rolls, maintaining stable and uniform strip tension throughout the rolling operation. Meanwhile, the Thickness Measurement System continuously monitors strip thickness in real time and integrates with the mill control system to enable automatic gauge adjustment. These solutions help improve thickness accuracy, enhance rolling stability, reduce material waste, and ensure consistent high-quality finished products.

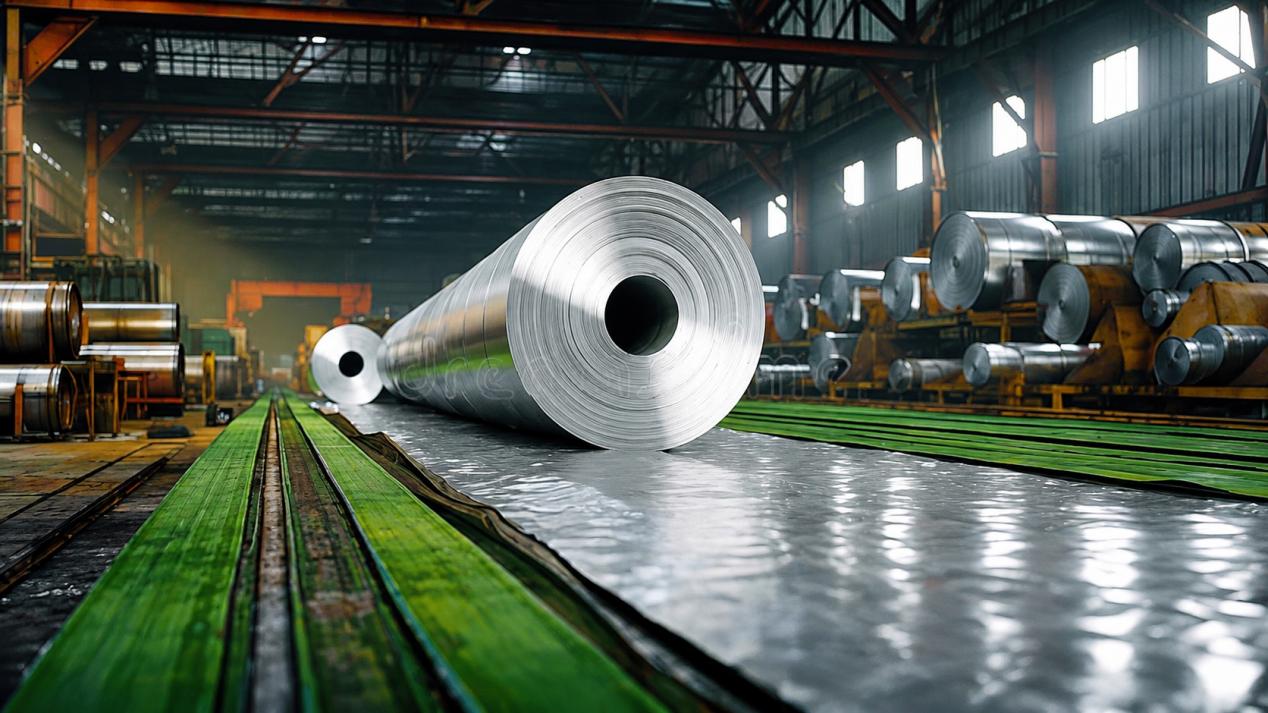

Galvanizing and color coating lines operate at high speeds with complex and extended processing sections, requiring precise control of strip movement and tension stability. During heating, coating, and cooling processes, uneven tension distribution can cause strip wandering, wrinkling, buckling, or surface defects, affecting product quality and production efficiency.

Arise’s Web Guide Systems are installed at key positions, including entry, processing, and exit sections, to maintain accurate strip alignment and stable web movement throughout the line. The Tension Control System ensures coordinated tension management between furnace, cooling tower, and looper sections, reducing tension variations and preventing surface scratches, deformation, and shape defects. These solutions help improve line stability, enhance product quality, and support reliable high-speed coating operations.

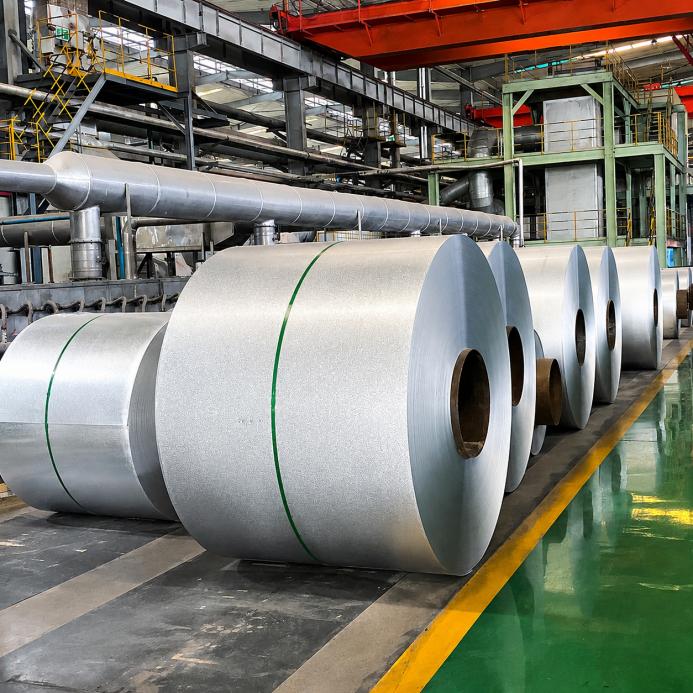

The winding quality and edge alignment of finished steel coils are critical factors that influence downstream processing efficiency and material utilization. During rewinding, strip misalignment or unstable tension can lead to issues such as telescoping, uneven coil edges, loose winding, or coil deformation.

Arise’s Web Guide System maintains precise strip centering throughout the rewinding process, ensuring consistent edge alignment and stable coil formation. The Tension Control System provides tapered tension management at the winder section, optimizing interlayer pressure within the coil and preventing winding defects such as collapse or loose layers. These solutions help steel manufacturers achieve higher-quality coils, improve operational efficiency, and ensure reliable performance in subsequent processing stages.

Applications of Web Control Products in Steel Industry

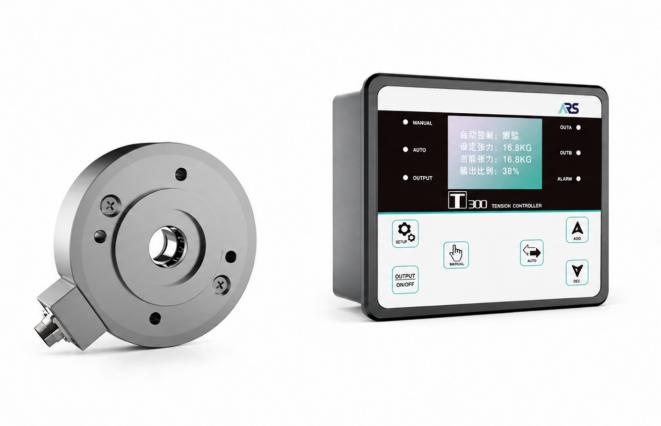

Tension Control Systems

Closed-loop tension control across the line, preventing strip breaks and shape defects.

Applications: Cold rolling, galvanizing, color coating, pickling, rewinding

Web Guide System

Ensures precise strip centering across all processes, preventing wandering.

Applications: Cold rolling, galvanizing, color coating, pickling, slitting, rewinding

Thickness Measurement System

Non-contact online thickness measurement, interfacing with mill for automatic gauge control.

Applications: Cold rolling, temper rolling

Width Measurement System

Real-time width measurement ensures slitting accuracy.

Applications: Slitting, rewinding

FAQs

A: Steel lines run at high speed with wide webs and high tension, requiring faster response and greater correction force. Arise’s guide systems use high-thrust servo actuators with response time ≤50ms, capable of real-time correction at high speeds; the system also features anti-shock design to withstand instantaneous impacts from strip welds and splices.

A: Yes. Arise’s system features a builtin material recipe library — guide sensitivity, tension setpoints, PID parameters and more can be prestored for different steel grades. Operators recall the corresponding recipe with one click, and the system automatically switches control parameters. Whether for highstrength steel requiring high tension or tensionsensitive silicon steel, the system sets optimal control strategies independently.

A: Arise’s Thickness Measurement System measures strip thickness in real time at the mill exit and transmits data to the mill control system. When thickness deviates from target, the system automatically adjusts roll gap (position control) and rolling force (pressure control), forming a continuous closed-loop adjustment that maintains finished thickness accuracy within microns.

A: Inconsistent slitting width usually stems from two causes: strip wandering before the slitter causing off-center entry, and inconsistent blade gaps. Arise’s Web Guide System ensures precise strip centering ahead of the slitter; the Width Measurement System monitors each narrow strip’s width in real time after slitting, triggering alarms immediately when deviation is detected, helping operators adjust blade gaps promptly.

A: Yes. Arise systems feature recipe management guide sensitivity, tension setpoints, thickness and width targets for different coil specifications can be pre-stored. When changing specifications, operators simply recall the corresponding recipe with one click, and the system automatically switches parameters without recalibration.
