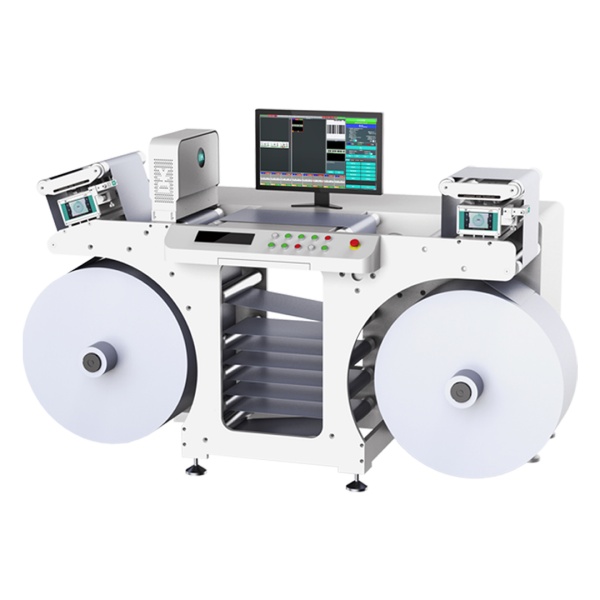

OK-4000 Offline 100% Defect Detection Systems for Quality Inspection Machines

  • Employing specialized contour lighting to effectively enhance the contrast between transparent labels and their backing paper
  • 100% full-frame inspection
  • Simple operation, real-time alarming
  • Automatic positioning and stop function
  • Particular advantages in detecting blank labels
  • Reliable detection performance regardless of whether the backing paper is transparent, opaque, or white
  • Supporting free switching between standard lighting and contour lighting to adapt to various inspection scenarios
Share to

Overview of OK-4000 Offline 100% Defect Detection Systems for Quality Inspection Machines

The 100% defect detection system supports a comprehensive workflow, ranging from full-web observation, missing label detection, and waste discharge inspection to high-precision full-web detection and workflow system integration. Leveraging a modular design, customers can select corresponding modules to meet diverse requirements within a single system, including the inspection of variable barcodes and QR codes. This ensures it is suitable for almost all transparent label inspections, such as missing labels and waste detection.

  • 100% Defect Detection Systems
  • 100% Defect Detection Systems
  • 100% Defect Detection Systems
  • 100% Defect Detection Systems
  • 100% Defect Detection Systems

Technical Parameters of OK-4000 Offline 100% Defect Detection Systems for Quality Inspection Machines

SubjectParameter
Nominal lateral resolution0.15mm
Nominal vertical resolution（see remark）0.15mm
Designed detection width10mm-600mm
Designed maximum speed（see remark）450m/min
Dot Defect detection accuracyDefect Area>0.2mm²
knife line detection accuracyDefect Area>0.1mm*5mm
Registration detection accuracyLateral > 0.15 mm, Longitudinal > 0.25 mm
