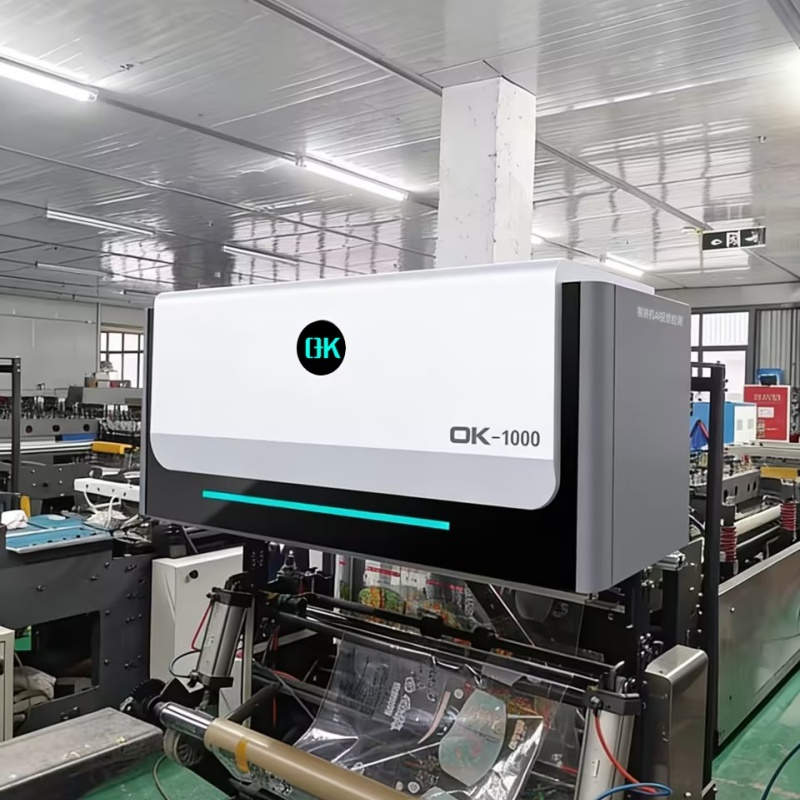

Product Overview of the OK-1000B Vision Inspection Systems for Bag Making Machines
The OK1000B is a high-precision vision inspection system specifically designed for bag-making machines. It employs a dual-line array camera (optional 4-camera) for front and back inspection, along with an integrated optical design, enabling simultaneous inspection of both sides of the bag. The system focuses on solving the most troublesome problems in the bag-making industry: insects, foreign objects, dirt, and impurities.
System Features of OK-1000B Vision Inspection Systems for Bag Making Machines
Dual Line-Scan Cameras – Simultaneous Front & Back Inspection
- Equipped with industrial dual line-scan cameras for synchronous imaging of both sides of the bag.
- Front-side inspection: streaks (knife lines), missing print, ink spots, registration deviation, stains and other printing defects.
- Back-side inspection: insects, foreign particles, contamination and other surface defects.
- Complete dual-side inspection in a single pass with no missed defects.
Integrated design – simple installation and enhanced stability
- All-in-one integrated structure combining illumination, cameras and optical system.
- No complicated on-site calibration required, compact footprint and strong anti-interference performance.
- Stable imaging and consistent inspection accuracy even on high-speed bag-making machines.
Enhanced Insect & Foreign Object Detection – Solving the Industry’s Biggest Challenge
- Reliably detects flying insects, insect remains, debris, fibers, hair, dust, oil contamination and other foreign contaminants.
- Stable detection of defects as small as 0.1 mm, effectively preventing product returns, customer complaints, compensation claims and brand reputation risks caused by insect or foreign object contamination.
Compatible with both printed and solid color bags:
- Printed bags: detect knife lines, missing print, ink spots, registration deviation and stains.
- Solid-color bags: detect insects, foreign objects, scratches, black spots and contamination. One system for multiple applications with fast product changeover and wider compatibility.
Intelligent rejection + multi-channel regional rejection – lower waste.
Online real-time inspection – without affecting production.
Technical Parameters of OK-1000B Vision Inspection Systems for Bag Making Machines
| Parameter | Value |
| Horizontal Resolution | 0.075–0.16 mm |
| Vertical Resolution | 0.075–0.16 mm |
| Inspection Range | 600–1300 mm |
| Detectable Defect Area | 0.05–0.2 mm² |
| Detectable Defect Types | Insects, hair, fibers and other foreign matter; stains, scratches, holes and other defects. |
