Web Control Products for Flexible Packaging Industry
Arise has been deeply engaged in the flexible packaging industry for many years, with solutions covering the entire web processing process—from film extrusion, printing, laminating, slitting to bag-making. With over two decades of technical expertise and industry experience, our web guiding, tension control, print inspection, stroboscopic inspection, coating quality tracking, width measurement, and thickness measurement systems are widely used in food packaging, pharmaceutical packaging, daily chemical packaging, industrial bags and other flexible packaging products, effectively ensuring consistent quality throughout web processing and achieving seamless integration with existing production lines.
The flexible packaging industry imposes extremely stringent requirements on printing precision, lamination strength, slitting accuracy and surface quality. Even minor printing defects, poor lamination, or slitting deviations can lead to barrier failure, compromised product shelf life, or compliance risks. Arise’s seven systems work together to effectively reduce waste, stabilize quality, and lower rework costs, helping flexible packaging manufacturers meet increasingly stringent customer and regulatory standards.
Web Control Solutions for Flexible Packaging Industry

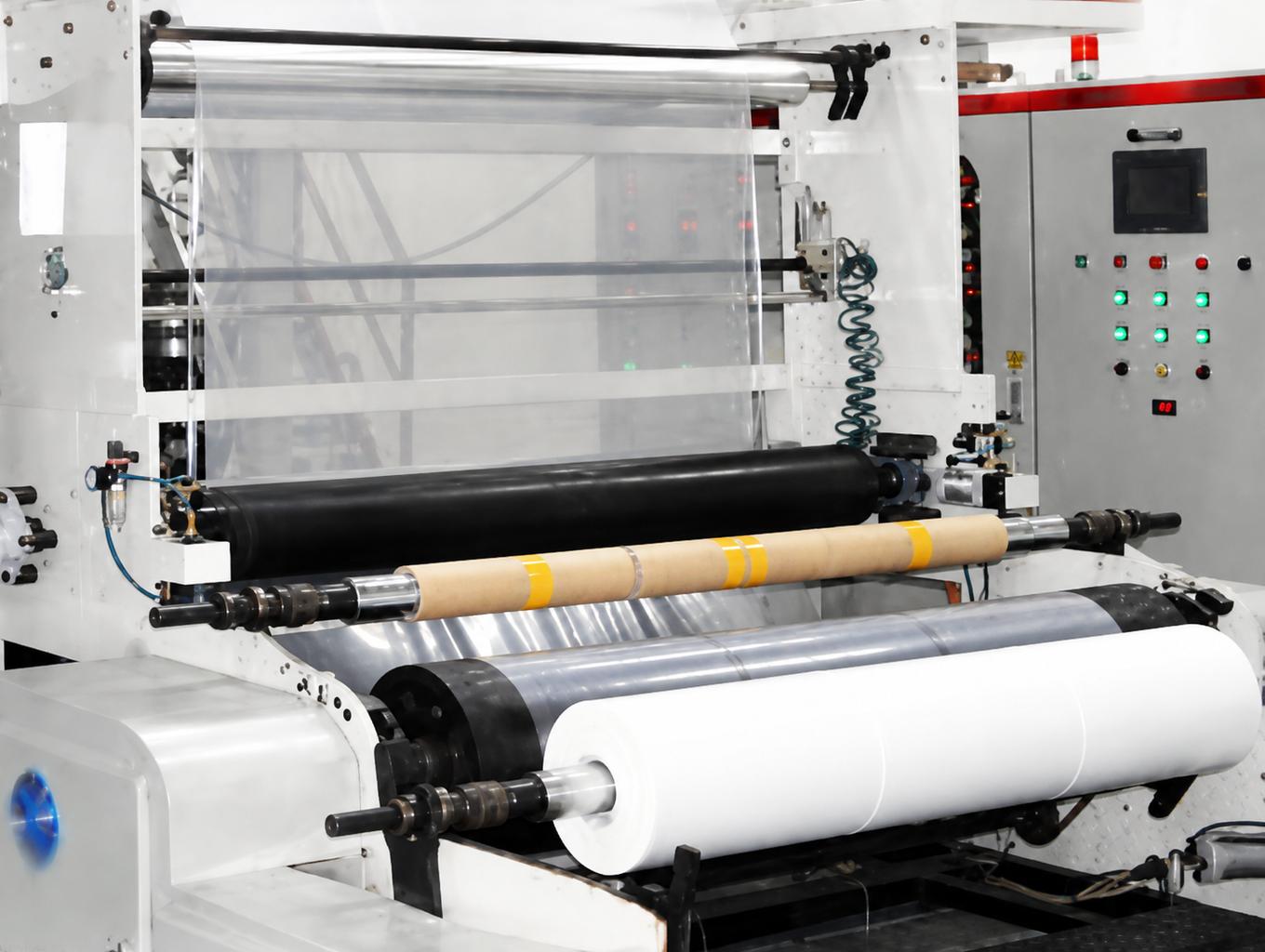

Film extrusion is the foundation of flexible packaging production, where consistent film thickness and stable winding quality are essential for achieving high-quality downstream printing and lamination results. During extrusion, variations in processing conditions, material flow, or equipment operation can cause thickness fluctuations, uneven film profiles, or winding defects that may affect product performance.
Arise’s Thickness Measurement System continuously monitors film thickness uniformity in real time, helping manufacturers maintain precise specifications and ensure that each film roll meets quality requirements before entering subsequent processes. Meanwhile, the Web Guide System maintains a stable web path during winding, preventing material deviation and improving roll consistency. Together, these solutions enhance production stability, reduce waste, and provide a reliable foundation for efficient flexible packaging manufacturing.

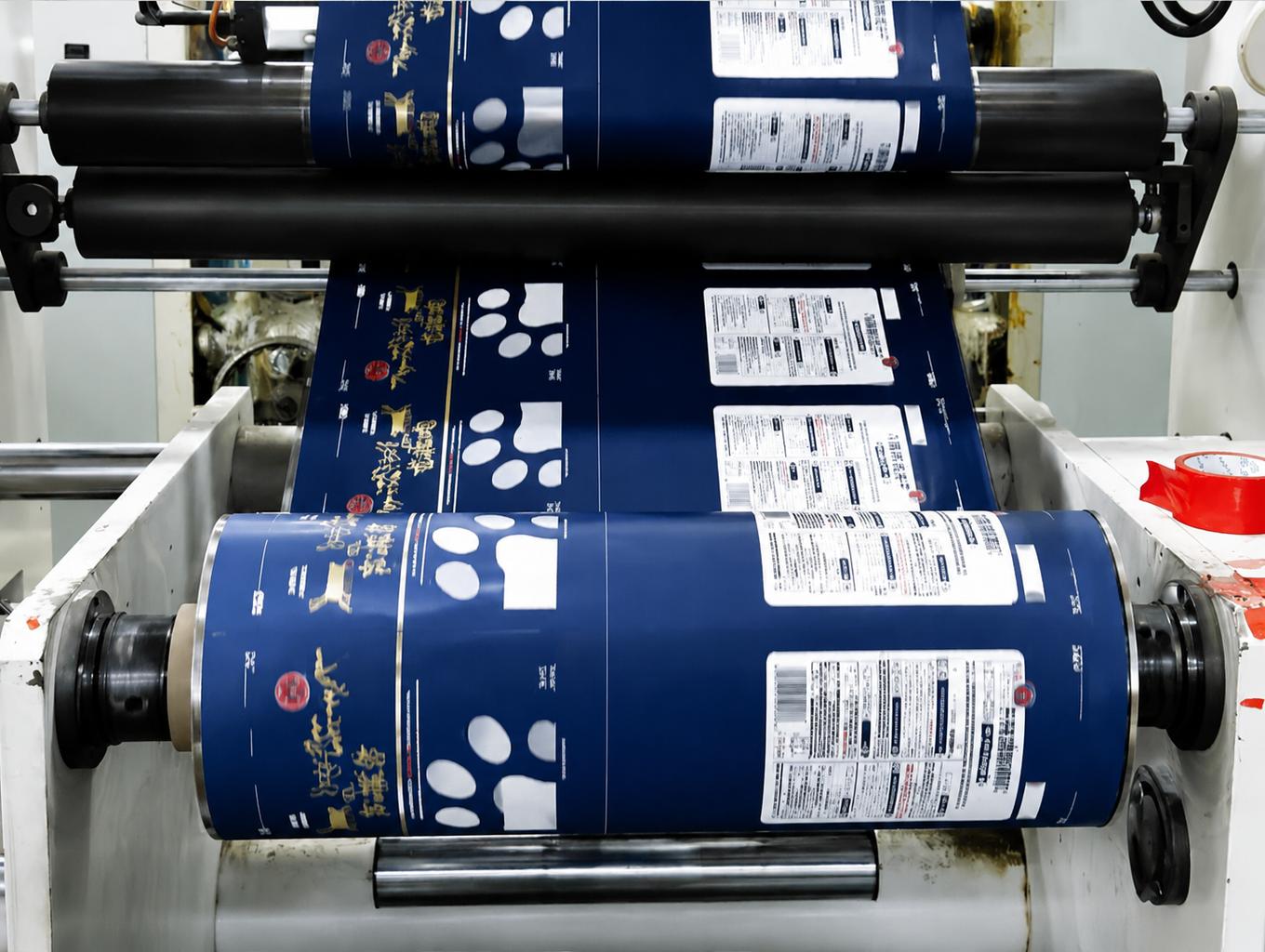

Flexible packaging printing, including gravure and flexographic printing, requires extremely high standards for registration accuracy and color consistency. During high-speed production, it is challenging for operators to continuously monitor every section of the printed web manually.
Arise’s Web Monitoring System converts high-speed moving images into clear still images, enabling operators to quickly identify issues such as registration errors, color variations, knife lines, stains, and other printing defects. The Print Inspection System provides 100% online inspection of the printed web, automatically detecting defects including misregistration, missing print, foreign particles, ink smearing, and surface abnormalities. These solutions help improve quality control efficiency, reduce defective products, and ensure consistent printing performance in flexible packaging production.

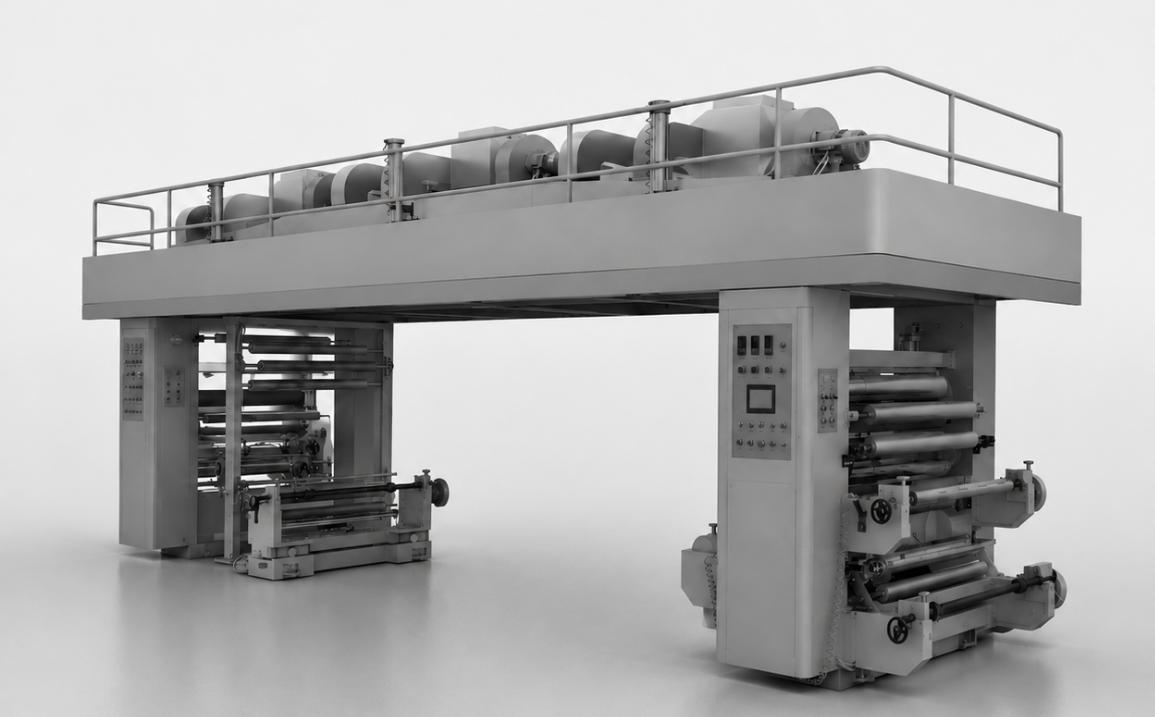

Lamination is a key process in flexible packaging production, where multiple film layers, including print film, barrier film, and sealant film, are combined to form a high-performance composite structure. Poor lamination quality may result in issues such as delamination, bubbles, weak bonding strength, or reduced barrier performance, affecting the reliability and shelf life of packaged products.
Arise’s Web Guide System ensures accurate alignment of multiple film layers throughout the lamination process, while the Tension Control System maintains stable tension across each unwinding unit to prevent wrinkles, stretching, and layer misalignment caused by tension variations. In addition, the CTS 3.0 Coating Quality Tracking System uses microwave radar and machine vision dual-inspection technology to monitor adhesive coating uniformity in real time, detecting defects such as uneven glue distribution, insufficient coating, and surface abnormalities. These integrated solutions help manufacturers improve lamination consistency, enhance production efficiency, and ensure reliable packaging quality.

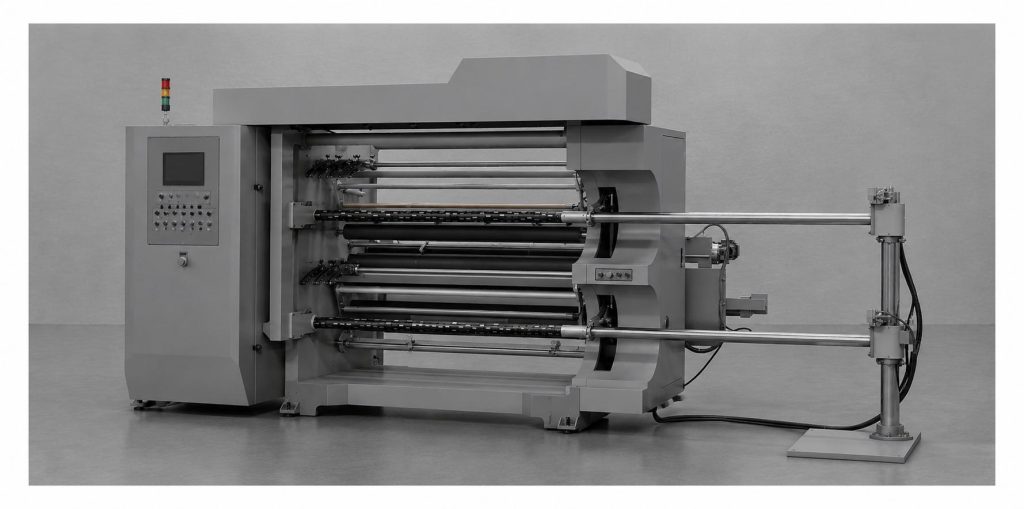

Slitting is an important converting process in flexible packaging production, where wide laminated webs are divided into multiple narrow rolls according to customer requirements. Slitting precision directly affects downstream bag-making efficiency, roll quality, and overall packaging performance. Web wandering before the slitter can cause width deviations, while unstable tension during slitting may result in wavy edges, poor winding, and inconsistent roll quality.
Arise’s Web Guide System maintains precise web centering before the slitting unit, ensuring accurate cutting alignment and stable operation. The Width Measurement System monitors the width accuracy of each slit roll in real time, while the Tension Control System maintains consistent tension between unwinding and winding sections to prevent defects such as wavy edges and telescoping. These solutions help flexible packaging manufacturers improve slitting accuracy, reduce material waste, and achieve higher-quality finished rolls.

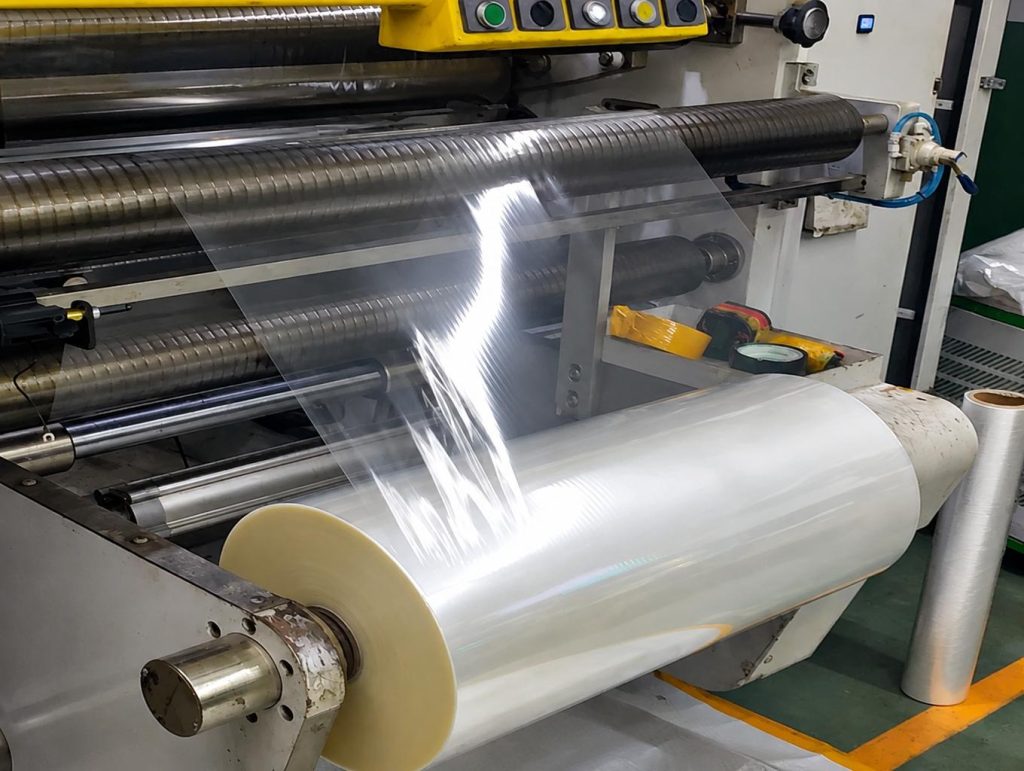

Case Studies of Web Control Products for Flexible Packaging Industry
Ningbo Ruicheng Packaging Material Co., Ltd. introduced the Arise CTS 3.0 Coating Quality Tracking System on its BOPET film production line. During flexible packaging film coating, coating uniformity directly affects film barrier properties, printability and lamination strength. The CTS 3.0 uses microwave radar + machine vision dual-inspection technology, penetrating substrates for real-time coating uniformity monitoring with simultaneous surface appearance defect scanning. After implementation, the system effectively improved film coating quality consistency and reduced material waste from uneven coating.

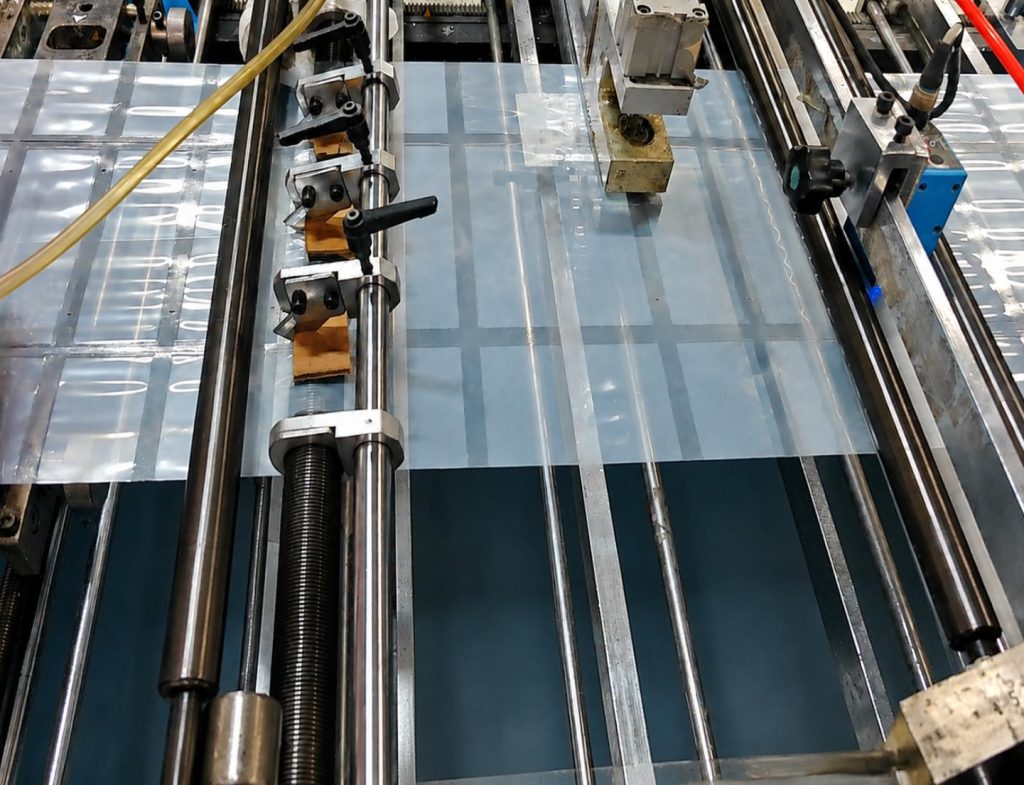

Cangzhou Zhongxin Plastics Co., Ltd. (specializing in plastic flexible packaging design and production, with 40 automated packaging production lines) introduced the Arise Print Inspection System on its bag-making line. Bag-making is the final step in flexible packaging production—defects from upstream printing, lamination and slitting that were not caught will surface here as finished product waste. Arise’s Print Inspection System performs 100% online inspection of web surfaces before bag-making, identifying printing defects, poor lamination, stains, scratches and other imperfections, ensuring every bag meets quality standards before forming and effectively reducing finished product waste.

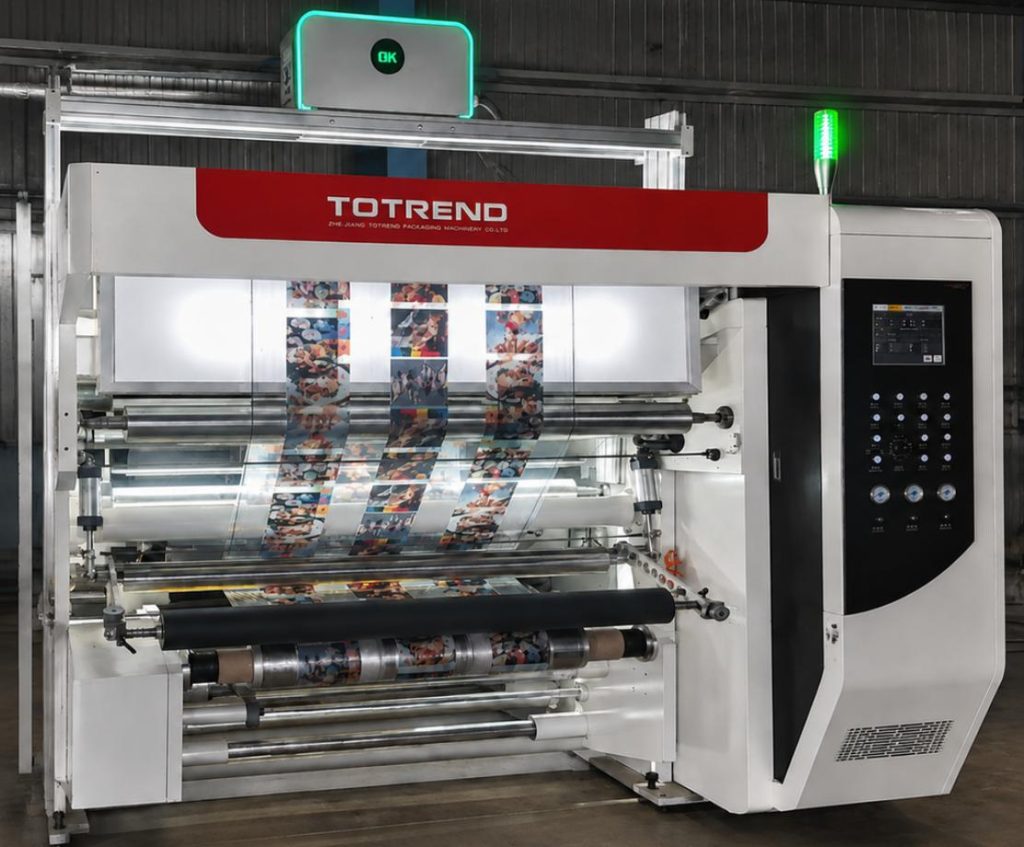

A packaging material manufacturer in Nigeria, Africa, introduced the Arise OK-8000 gravure online quality inspection system on its wide-web flexible packaging printing line. The OK-8000 is a high-precision automated inspection solution developed for wide-web roll materials, integrating advanced AI deep learning algorithms capable of real-time detection of dozens of defects including knife lines, stains, missing prints, registration errors, insects, bubbles, ink spots, and uneven coating. After implementation, the system achieved 100% online full inspection at high printing speeds, effectively reducing the risk of defects reaching downstream and ensuring consistent quality of exported packaging products.
Applications of Web Control Products in Flexible Packaging Industry
Web Guide System
Ensures precise alignment of films throughout extrusion, printing, laminating, and slitting, preventing printing offset, poor lamination, and material waste from wandering.

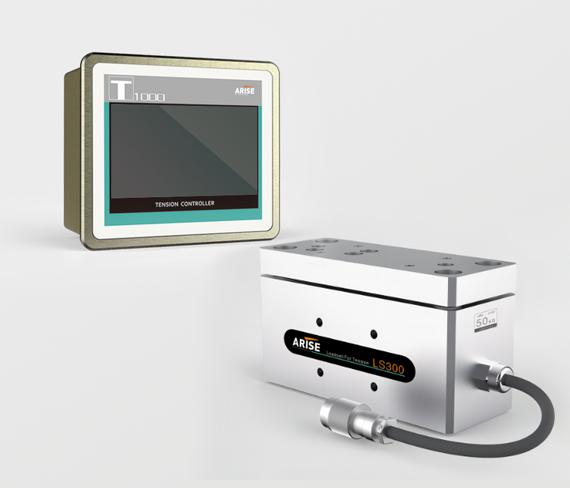

Tension Control System
Closed-loop tension control ensures constant tension throughout flexible packaging web processing, preventing stretching, wrinkling, or uneven winding from tension fluctuations.
Print Inspection System
100% online inspection identifying misregistration, knife lines, color deviation, stains, missing print, foreign matter, ink smearing and other defects.
Web Monitoring System
High-speed printing image freeze observation, turning high-speed moving images into still images for timely detection of printing defects.
Width Measurement System
Real-time online width measurement, monitoring the width accuracy of slit rolls to ensure every roll meets customer specifications.

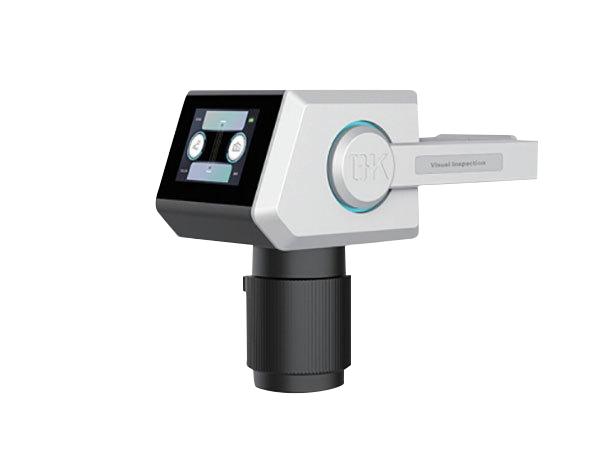

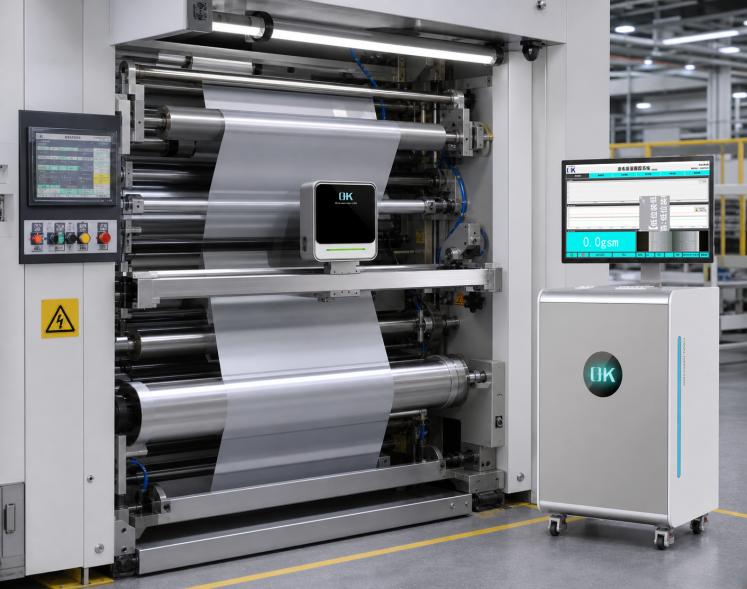

CTS 3.0 Coating Quality Tracking System
Microwave radar + machine vision dual-inspection technology, penetrating substrates for real-time adhesive coating uniformity monitoring, with simultaneous surface appearance defect scanning.
Thickness Measurement System
Non-contact online thickness measurement, monitoring material thickness uniformity in real time to ensure every batch meets specifications.
