Web Control Products for Labeling Industry
Arise has been dedicated to the label industry for many years, providing comprehensive solutions that cover the entire web processing workflow, including self-adhesive label manufacturing, printing, laminating, die-cutting, slitting, and final quality inspection. Leveraging more than 20 years of technical expertise and industry experience, Arise’s products are widely applied in various label applications, such as self-adhesive labels, garment tags, pharmaceutical labels, food labels, and other specialty label products. These solutions help maintain consistent quality throughout the web processing process while enabling smooth integration with existing production lines.
The label industry demands exceptional levels of printing accuracy, die-cutting precision, and surface quality control. Even small defects in printing, cutting alignment, or surface appearance may result in incorrect label information, regulatory compliance issues, or costly product recalls. Arise’s advanced web guiding systems, tension control solutions, print inspection systems, and stroboscopic inspection technologies help minimize material waste, improve production stability, and reduce rework expenses.
Web Control Solutions for Labeling Industry

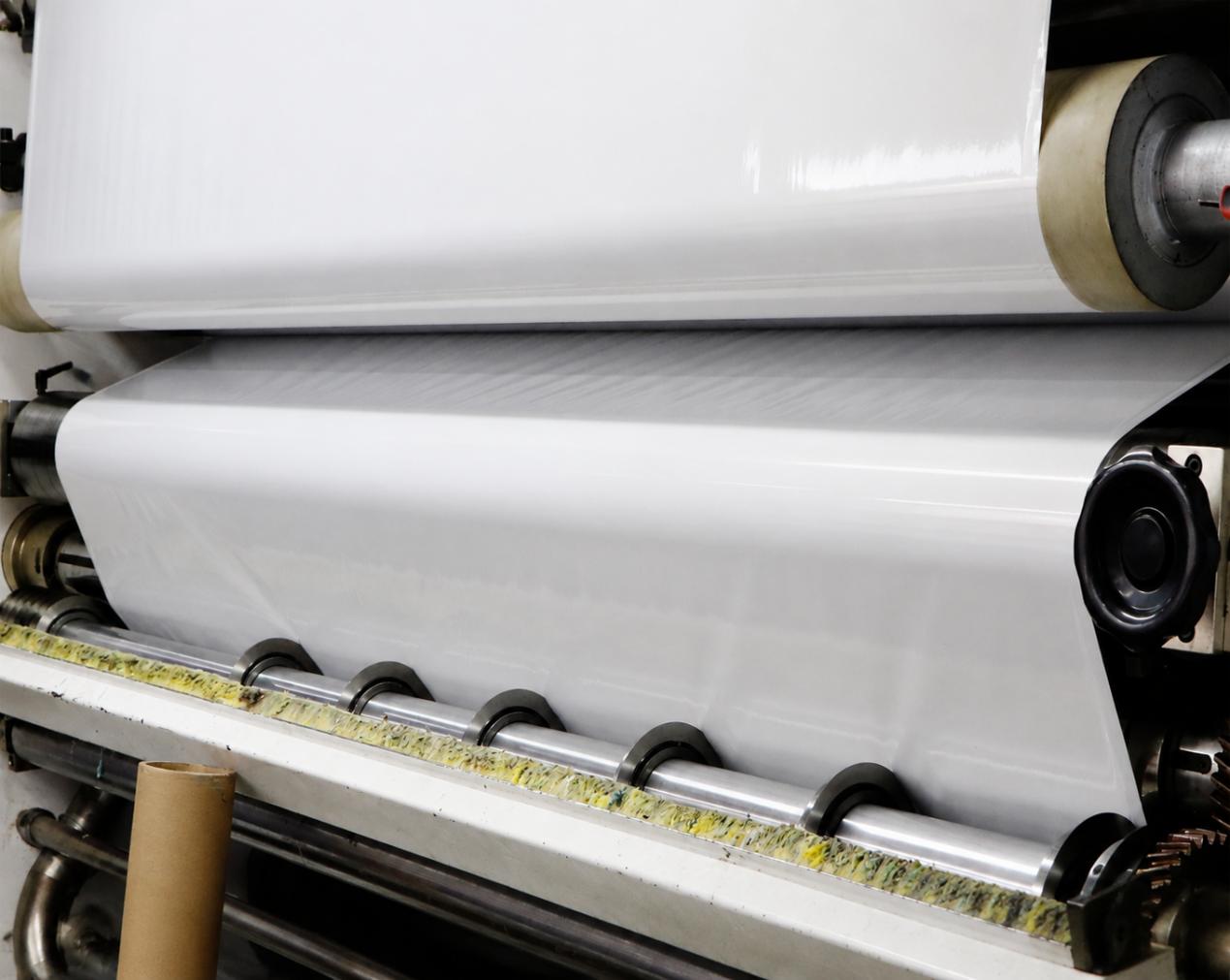

Self-adhesive label production typically involves the precise handling and processing of multiple web materials, including facestock, release liners, and adhesive layers, each of which plays an important role in the final label performance and quality. Throughout the unwinding process, various factors such as changes in roll diameter, differences in material thickness and elasticity, fluctuations in production speed, and variations in environmental conditions can significantly affect web tension stability and material alignment. These changes may result in uneven tension distribution, web wrinkles, lateral movement, or positioning deviations, which can negatively impact printing accuracy, die-cutting precision, and overall production efficiency.
To address these challenges, Arise provides advanced tension control and web guiding solutions designed to ensure stable material handling throughout the label manufacturing process. By continuously monitoring and adjusting web tension, Arise’s systems help maintain a consistent web path, improve running stability, and reduce material waste caused by misalignment or process interruptions.

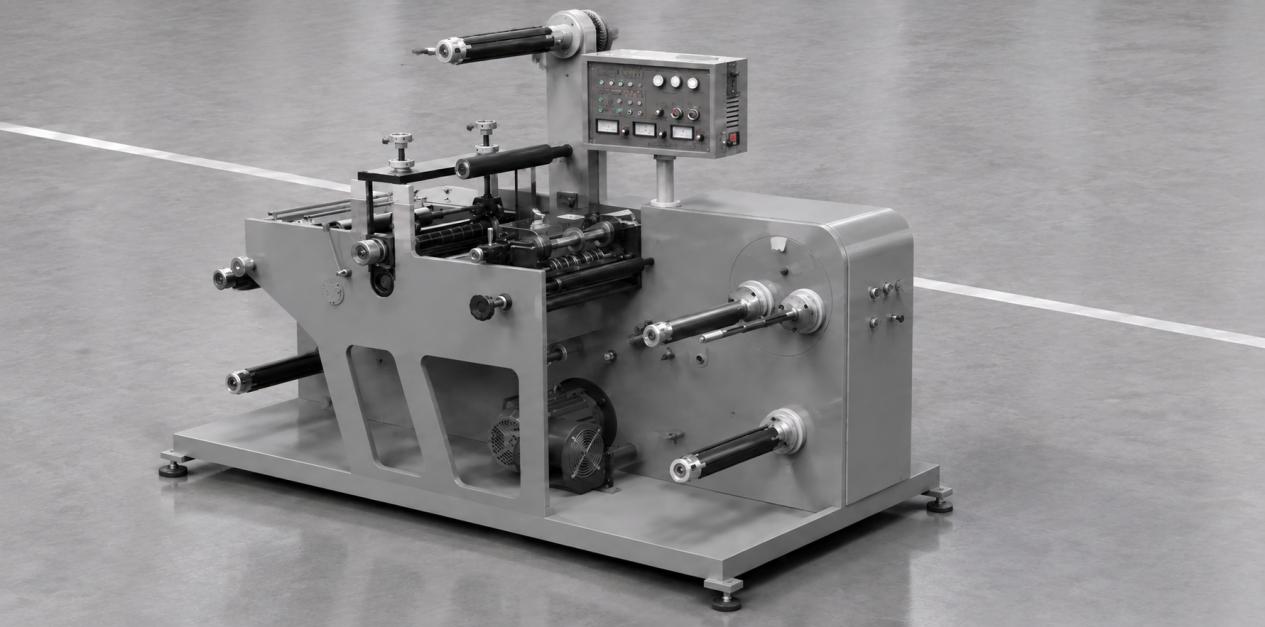

Die-cutting is a critical stage in label manufacturing, as it determines the final shape, dimensional accuracy, and overall performance of finished labels. During this process, precise cutting alignment is required to ensure that label edges, shapes, and patterns meet design specifications while maintaining consistent quality across large production volumes. Any deviation in die-cutting accuracy can affect label appearance, application performance, and production efficiency, especially for complex label designs or high-speed converting operations.
Arise’s real-time web guiding and advanced tension control systems help ensure stable material alignment and consistent web positioning throughout the die-cutting process. By continuously monitoring and adjusting web movement, these solutions minimize lateral deviation, improve cutting registration accuracy, and support efficient waste removal.

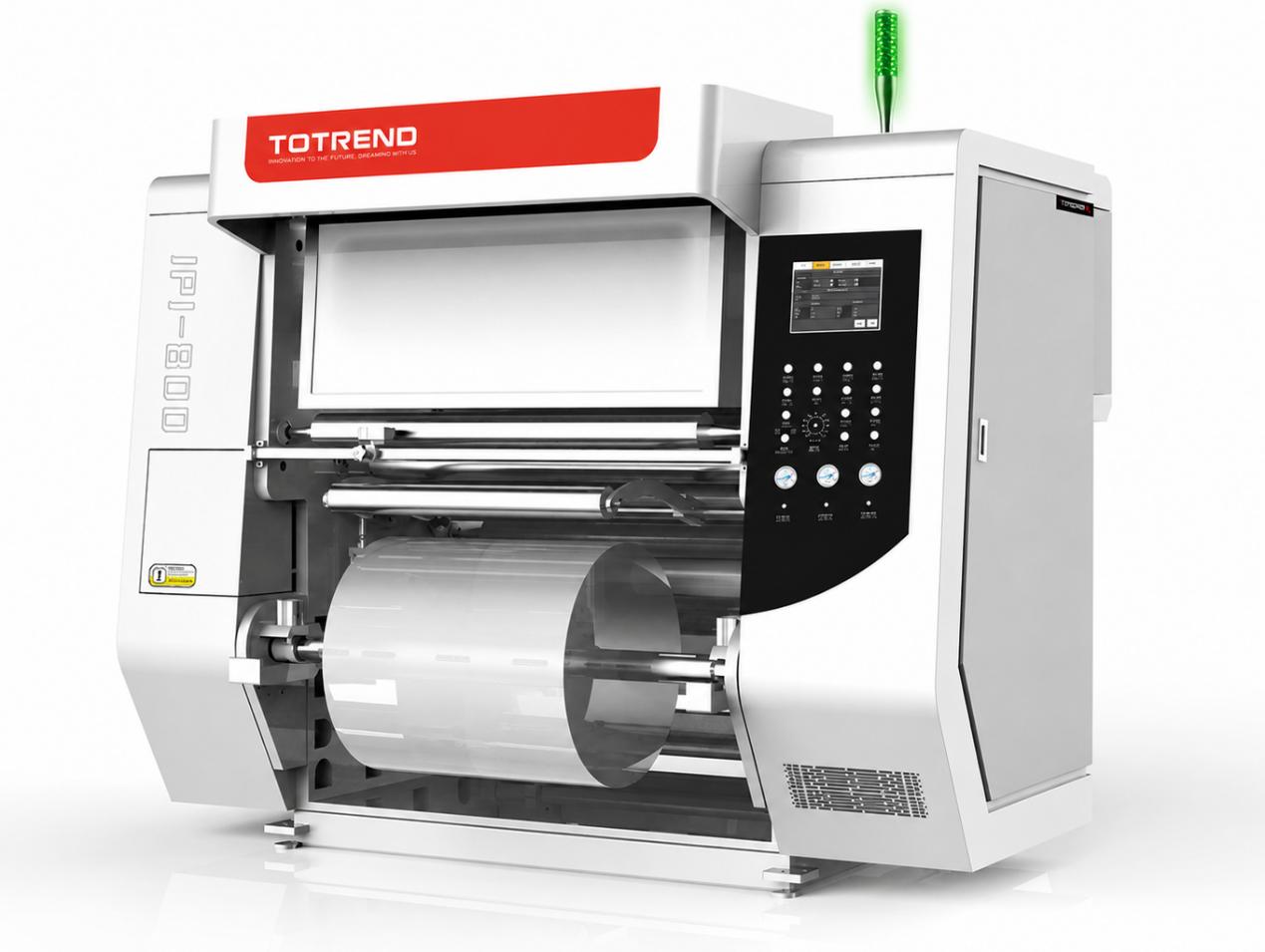

Slitting is a key converting process in label production, where wide label webs are divided into narrow rolls with precise dimensions. Slitting accuracy directly affects roll quality, edge consistency, and labeling performance. Any alignment deviation can cause uneven widths, angled cuts, or winding issues.
To ensure stable slitting results, accurate web positioning and tension control are essential. Arise’s Web Guide System maintains precise web alignment before the slitting unit, reducing material deviation and improving cutting accuracy and production stability.
After slitting, Arise’s Print Inspection System performs real-time surface inspection before rewinding, identifying defects such as printing errors, color variations, registration issues, and die-cutting problems. These integrated solutions help label manufacturers reduce waste, enhance quality control, and achieve consistent product performance.
Case Studies of OK-4000 Offline Quality Inspection Systems for Labeling Industry

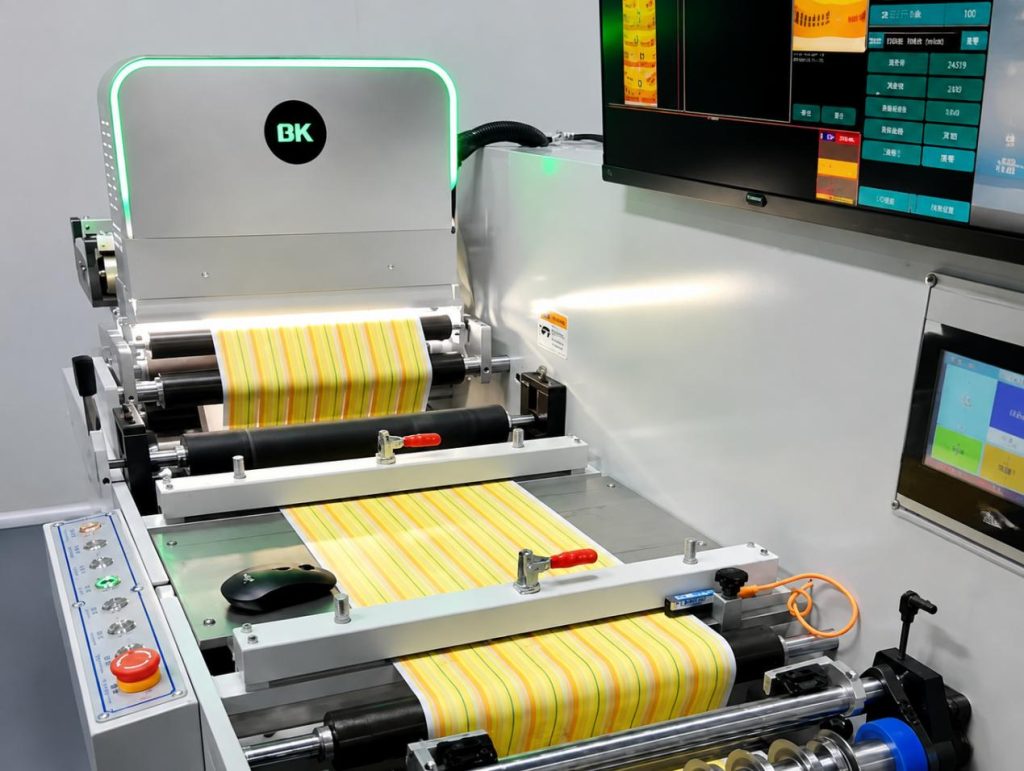

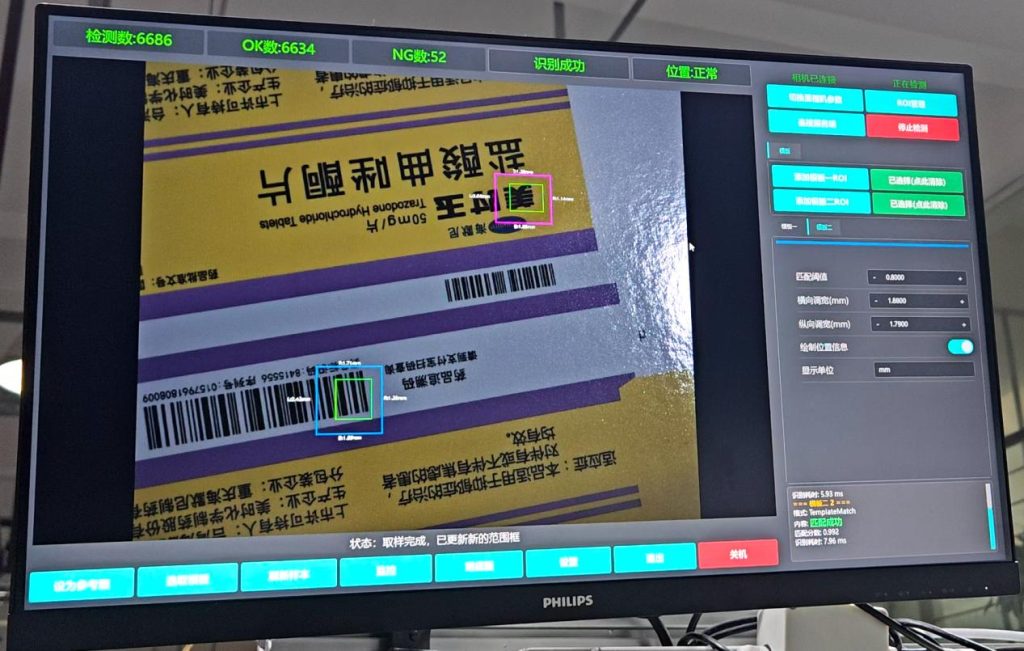

Chongqing Fuling Taiji Printing Co., Ltd. introduced the Arise OK-4000 offline quality inspection system on its label printing line. The OK-4000 uses a specialized contour light source to effectively enhance contrast between transparent labels and the liner, ensuring stable inspection regardless of liner material — transparent, opaque or white. After implementation, the system effectively reduced the miss rate of label printing defects, ensuring the printing quality and compliance of pharmaceutical labels.
Dongguan Yinte Beixun Machinery Technology Co., Ltd. (specializing in R&D and production of self-adhesive label printing machines, high-speed die-cutting machines, and fully computerized high-speed inspection machines) introduced the Arise OK-4000 inspection system on its label slitting line, performing offline quality inspection of slit labels to ensure every roll meets standards for die-cutting accuracy and surface quality.
Wangli Label (Huizhou) Co., Ltd. introduced the Arise stroboscopic inspection system on its flexographic printing line, freezing the printed image in real time during high-speed printing to help operators detect registration errors, stains and other printing defects in time.
Applications of Web Control Products in Labeling Industry
Web Guide System
Ensures precise alignment of labels and materials throughout printing, laminating, and slitting, preventing printing offset and material waste from wandering.
Tension Control System
Closed-loop tension control ensures constant tension throughout label web processing, preventing stretching, wrinkling, or uneven winding from tension fluctuations.
Print Inspection System
100% online inspection identifying color deviations, registration errors, missing text, stains, scratches, die-cutting deviation and other defects.

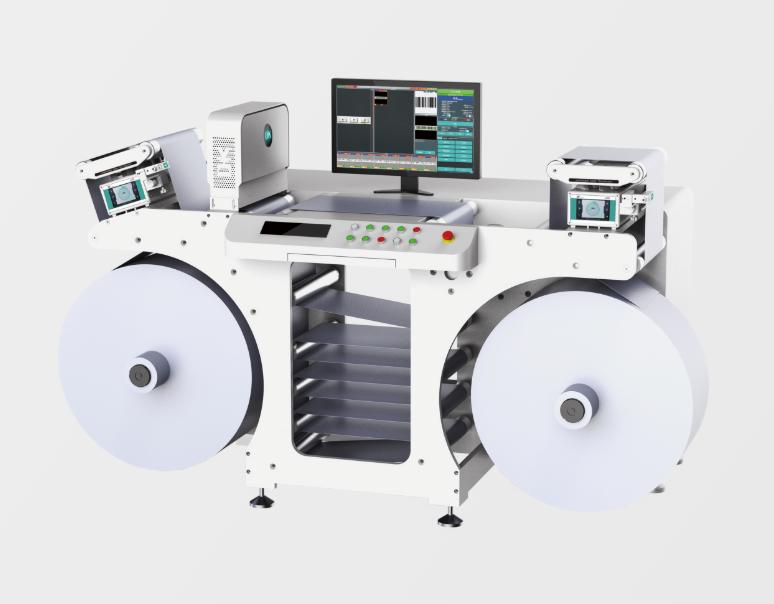

OK-4000 Offline Quality Inspection System
Offline rewind final inspection with specialized contour light source, effectively enhancing contrast between transparent labels and liner for stable inspection regardless of liner material.
Width Measurement System
Real-time online width measurement, monitoring the width accuracy of slit labels to ensure every roll meets specifications.
CTS 3.0 Coating Quality Tracking System
Microwave radar + machine vision dual-inspection technology, penetrating substrates and ink layers for real-time coating uniformity monitoring, with simultaneous surface appearance defect scanning.
Thickness Measurement System
Non-contact online thickness measurement, monitoring material thickness uniformity in real time to ensure every batch meets specifications.
