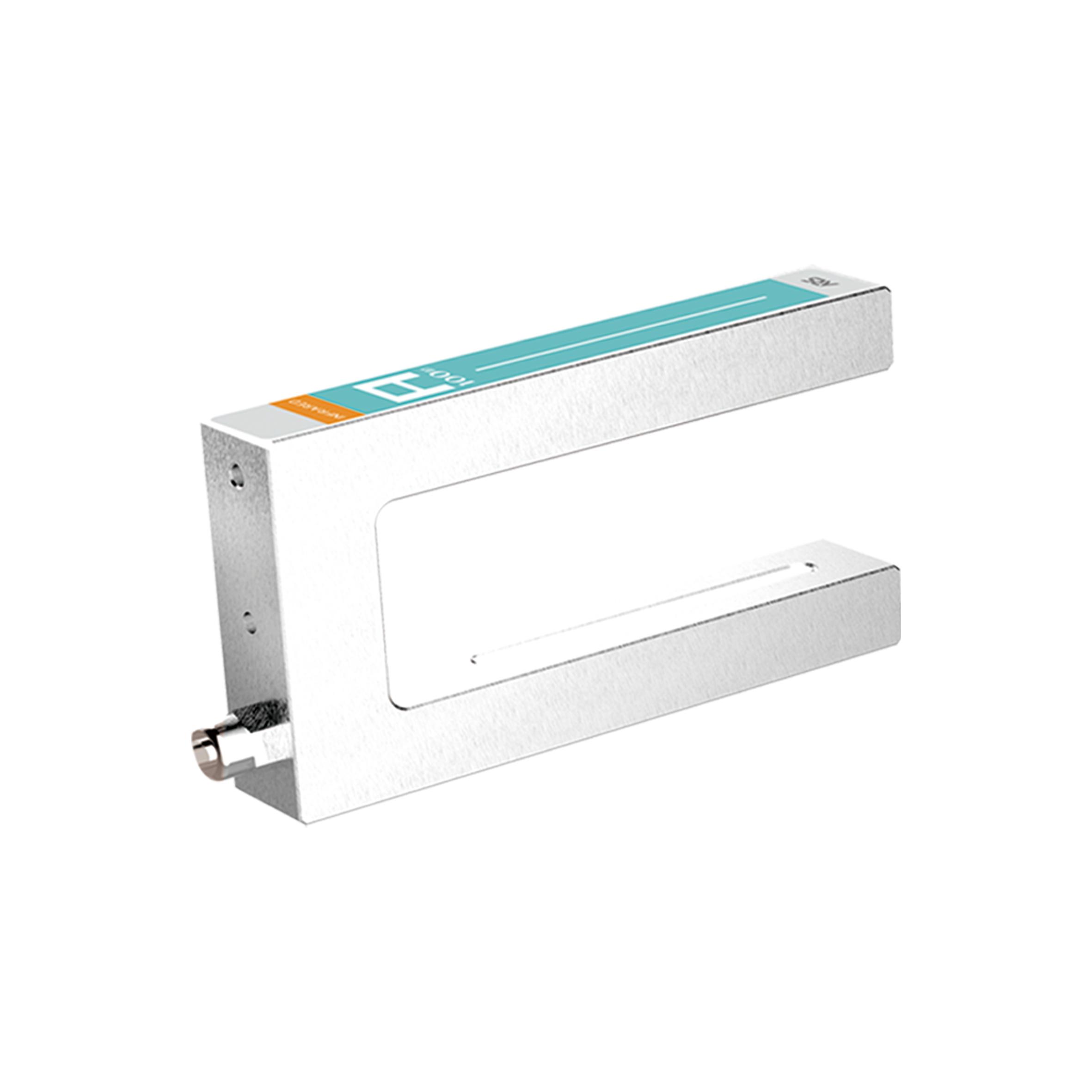

A100-W1 Web Guide Sensor for Edge Detection
- Suited for edge detection of mesh materials, not suitable for ultra-transparent materials.
- Adopting imported infrared-sensitive components
- Fully sealed titanium alloy shell design with special surface treatment for anti-corrosion
- Easy installation and setup
Share to
Understanding the Basics of A100-W1 Web Guide Sensor for Edge Detection
The A100 series web guide sensor can detect the edge of rubber materials, best suited for material edge detection with mesh and can be used normally under the interference of a 30,000-volt electrostatic environment and a high-power inverter.
Dimensional Parameters of A100 Infrared Edge Web Guide Sensor
| Operating voltage | 12V DC |
| Electricity consumption | 500mA |
| Ambient temperature | +5~+50℃ |
| Relative air humidity | 15-95%(non-condensing) |
| Detection range | ±35mm |
| Wavelength | 880nm |
| Cable length | Maximum 10m |
| Protection grade | IP54 |
| Weight | 0.19kg |
| Width between | 40/100 mm |
| Dimensions(L*W*H) | 165x25x92mm |
