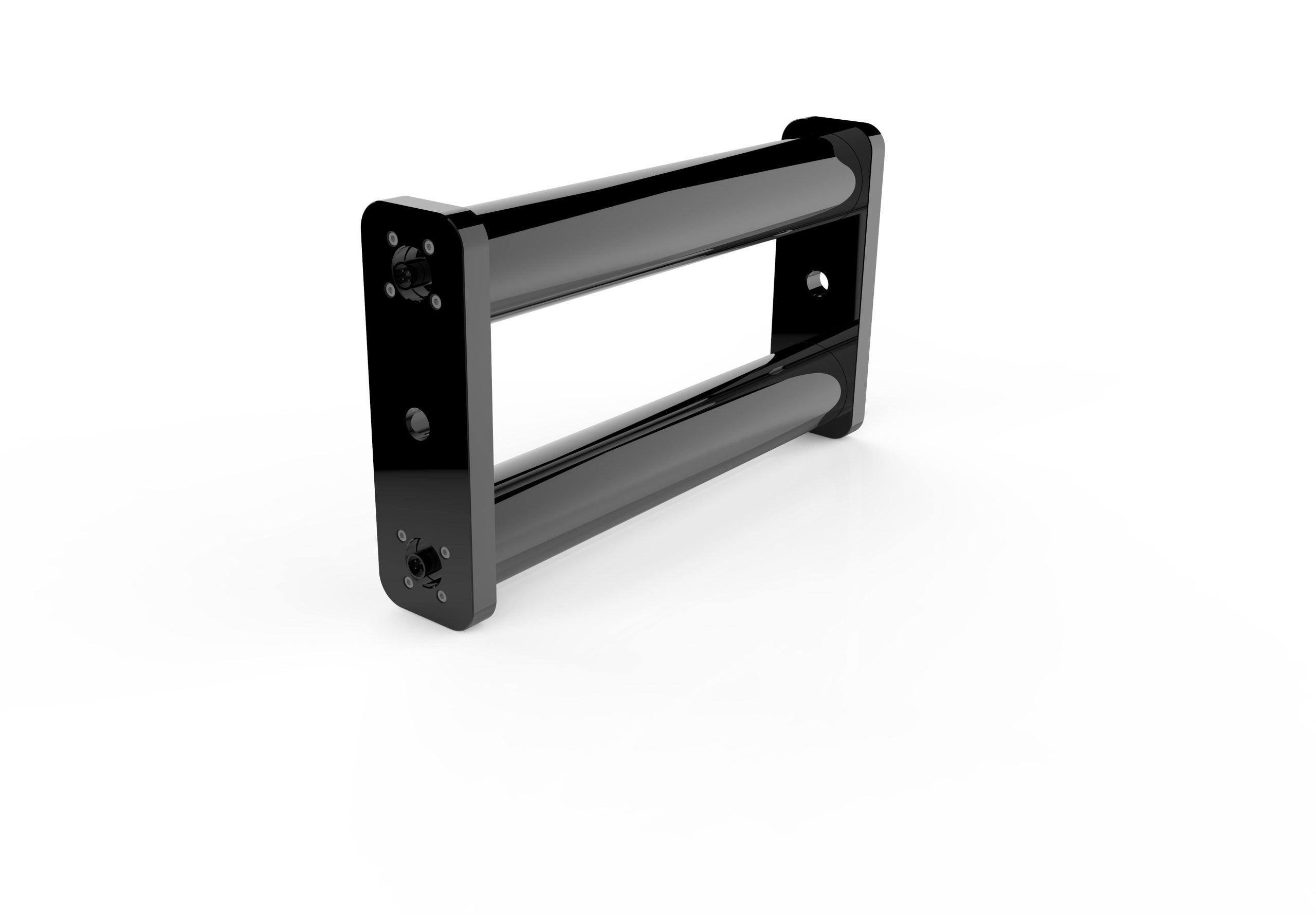

What is A1000 Full-width Light Curtain Web Guide Sensor
A1000 full-width light curtain sensor is designed for full-size detection and centering web guiding. It is simple to install and operate, providing high-accuracy detection for various materials, mostly applied for the corrugated paper and tire industries.
Dimensional Parameters of A1000 Full-width Light Curtain Web Guide Sensor
| Operating voltage(Rated value) | 24 V DC | Interface | φ12 | Model | A1000-600L |
| Ambient temperature | 5-55℃ | Cable length to controller | Maximum 10m | A1000-1000L | |
| Relative humidity | 15-95%(non-condensing) | Protection grade | IP 53 | A1000-1600 | |
| Detection range | 150-2000mm | A1000-600L Dimensions(L’W”H) | 622×60.3x185mm | 622×60.3x185mm |
