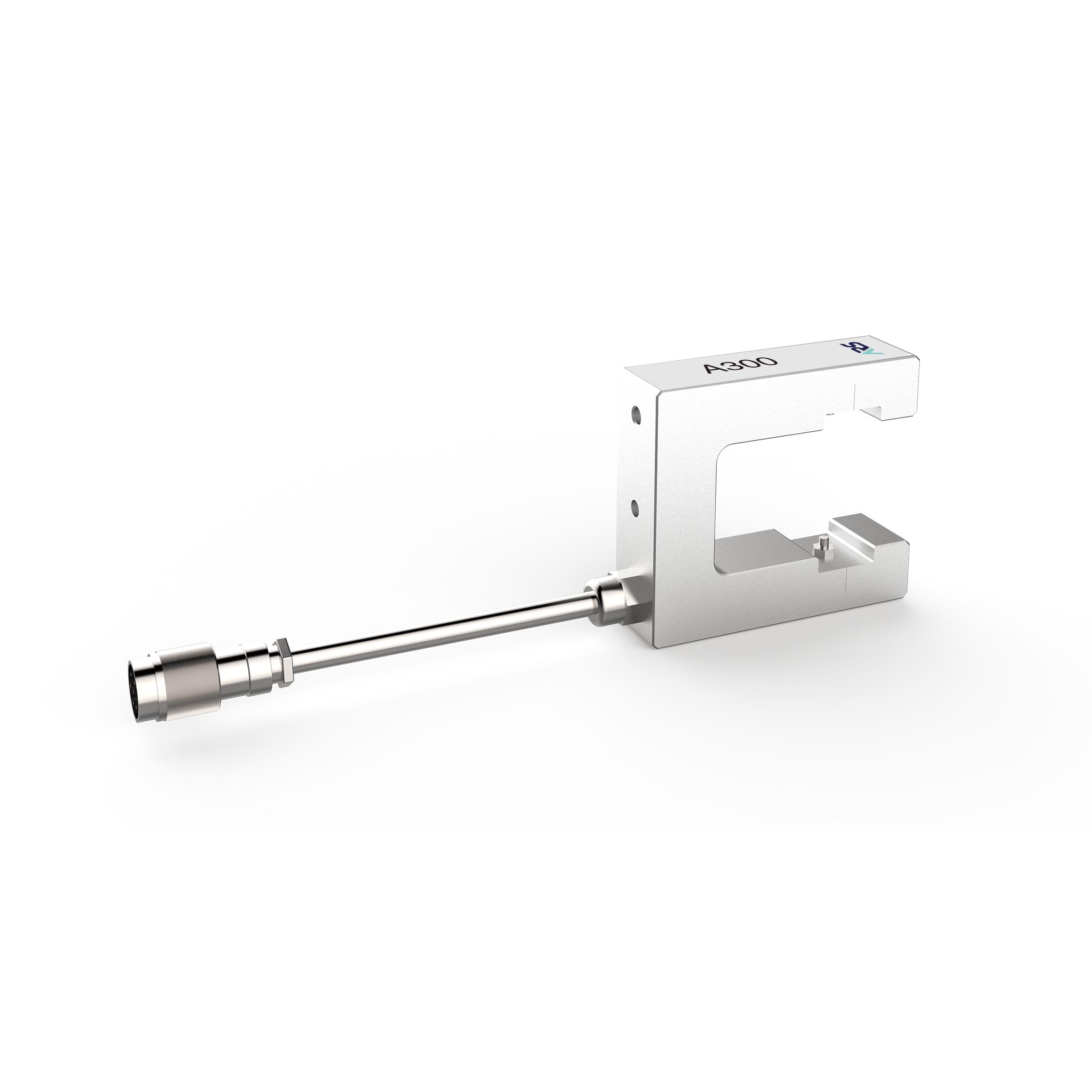

A300 Optical Fiber Web Guide Sensor
- It can detect the edges of paper, printed film, translucent film, non-woven fabric, gauze, screen window, metal, and other materials.
- The sensor can withstand temperatures up to 350°C.
- It functions reliably in environments with 30,000 volts of static electricity.
- Fully sealed titanium alloy shell design, with exquisite appearance and anti-corrosion
Share to
What is A300 Optical Fiber Web Guide Sensor
The A300 type is a high-temperature optical fiber through-beam web guide sensor, most suitable for high-temperature material edge detection. It operates stably under interference from high-power frequency converters.
Dimensional Parameters of A300 Optical Fiber Web Guide Sensor
| Operating voltage | 12V DC |
| Electricity consumption | 500mA |
| Ambient temperature | ≤350℃ |
| Relative air humidity | 15-95%(non-condensing) |
| Detection range | ±3mm |
| Protection grade | IP54 |
| Mounting Height | Altitude 0～3000m |
| Weight | 0.7kg |
| Dimensions(L*W*H) | 89x25x78.5mm |
