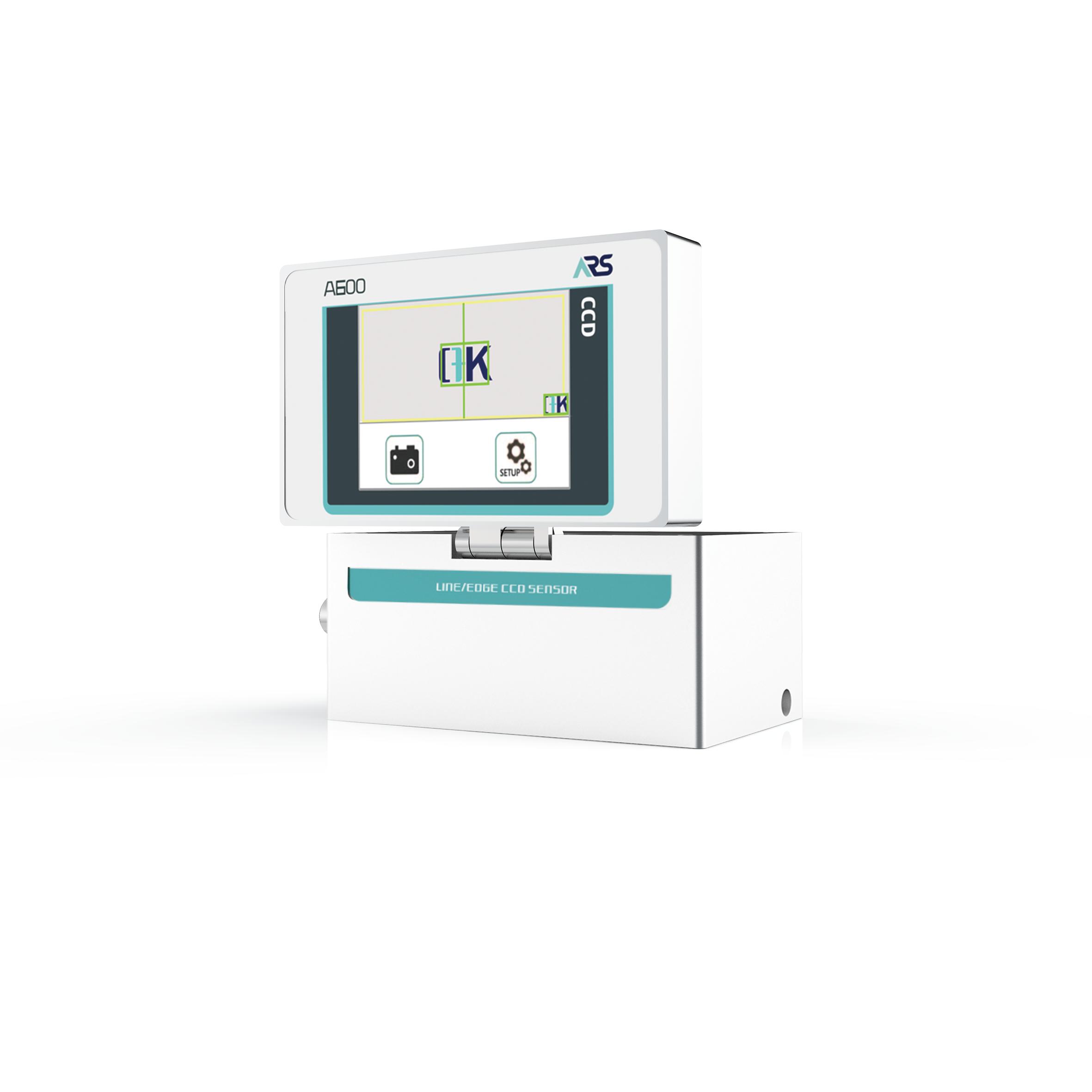

A600 CCD Image Sensor
  • A600 CCD Image Sensor

    • A600 CCD Image Sensor

    • It uses an area scan camera with 5 million pixels and a CCD sensor.
    • It is equipped with a 64-bit dual-core CPU.
    • The sampling time is 1 ms.
    • The detection range is 40 mm × 40 mm.
    • It supports real-time image display.
    Share to

    Understanding the Basics of A600 CCD Image Sensor

    The A600 type CCD image sensor is designed to track patterns, lines, edges, and feature marks, providing deviation correction for precise operation. It offers full touch operation for easier use and it is adaptive to ambient light conditions.

    Dimensional Parameters of A600 CCD Image Sensor

    Operating voltage12-24V DCPower consumption300mA DCDisplay resolution320×240 pixels
    Display operating voltageSupplied by electric eye 200mA DC(display)Resolution0.02mm
    CCD operating voltageSupplied by controllerAmbient temperature5-55℃Detection range40mm×40mm
    Working distance30mm, ±1mmRelative humidity15-95%(non-condensing)Interface5-core
    Cable length to controllerMaximum 10mWeight0.68kg
    Protection gradeIP54Dimensions(L”W”H)105×64×47.5mm
