C100/C100F Web Guide Sensor

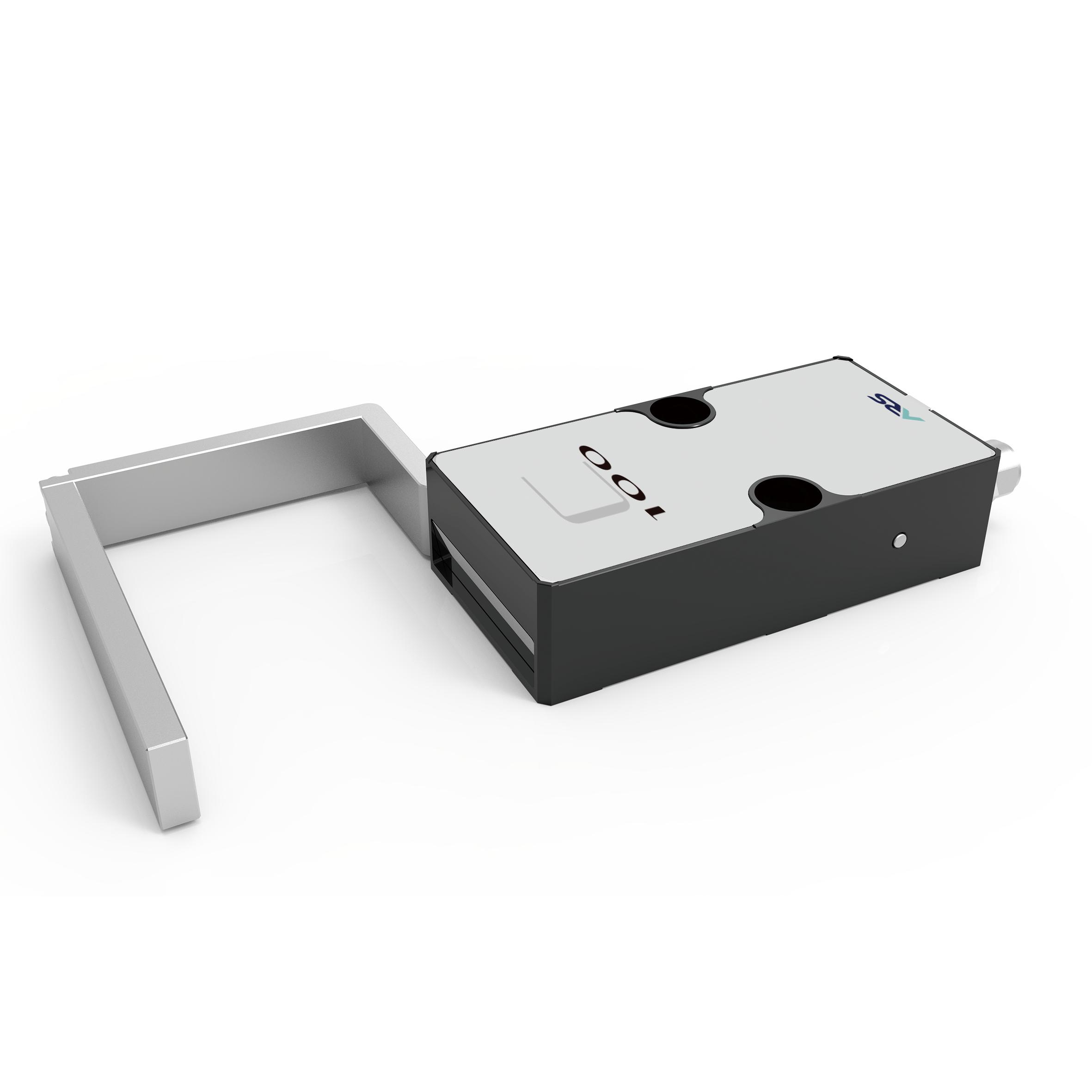

C100 Reflex Sensor
- Uses the emitted light beam reflected from the target surface.
- Locates and measures the distance to the target.

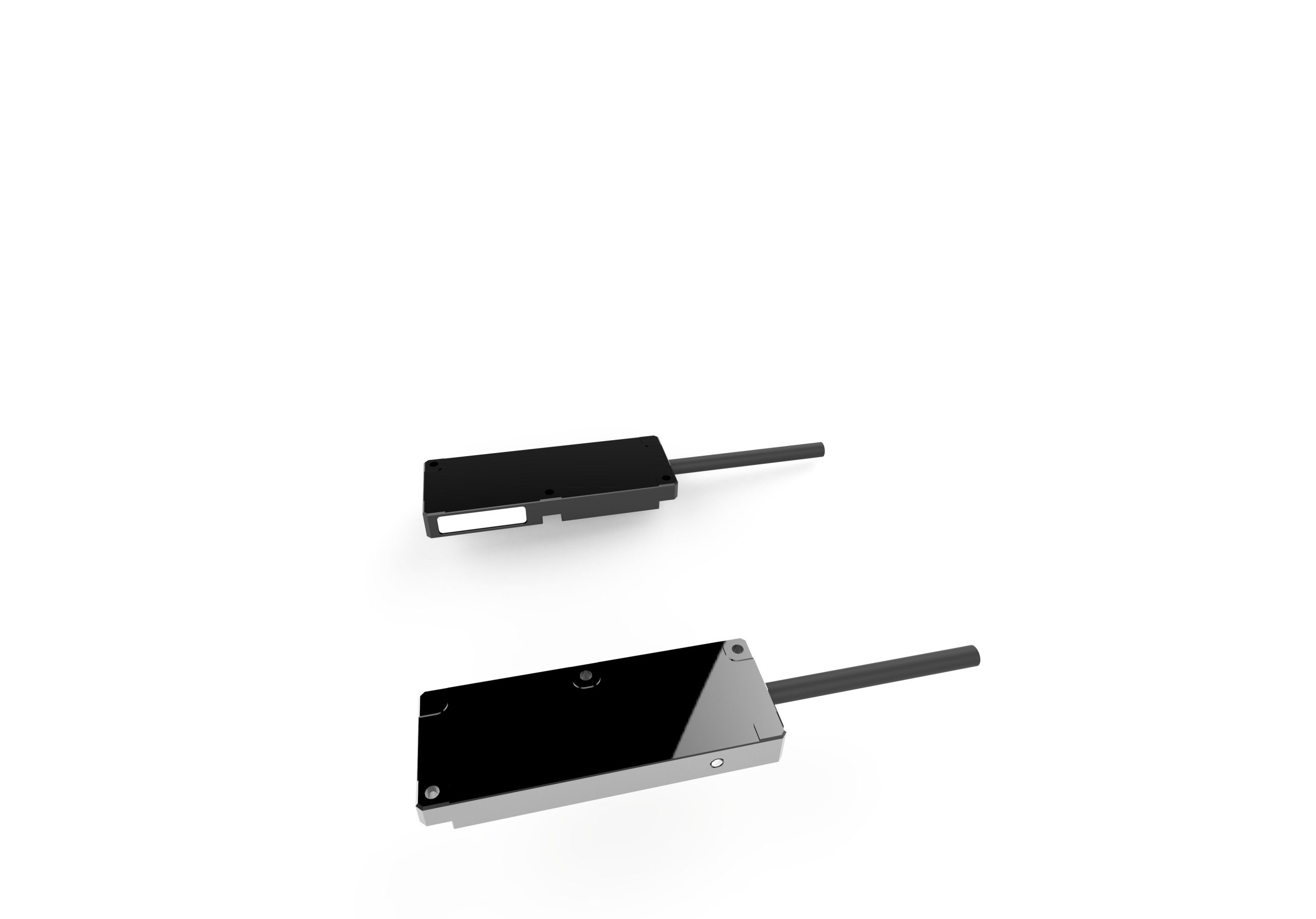

C100F Through-beam Sensor
- Detects target presence using a transmitted laser/infrared signal between transmitter and receiver.
- Requires only a small installation space.
Share to
Understanding the Basics of C100/C100F Web Guide Sensor
The C100 Reflex Sensor operates on the principle of reflecting an emitted light beam from the surface of a target object to locate and measure its distance, featuring non-contact and rapid detection.
The C100F Through-beam Sensor identifies the presence of a target by transmitting a laser/infrared signal from a transmitter to a receiver, with non-contact detection and compact space requirements.
Dimensional Parameters of C100/C100F Web Guide Sensor
| Input voltage | 12-24V | Sampling frequency | 2K |
| Output signal | 4-20mA | Protection grade | IP65 |
| Detection range | ±10mm | ||
| Detection accuracy | 0.001mm |
