Chongqing ARISE CTS 3.0 Coating Quality Tracking System Upgrades Coating Quality Control Standards – Breakthrough in Dual-Detection Technology
Technical Positioning: Innovator of Dual-Detection Technology, Building Differentiated Technical Advantages
In the field of flexible packaging lamination inspection, the industry is facing bottlenecks of single-detection technology. Conventional equipment mostly adopts a single inspection mode, focusing either on thickness measurement (X-ray / near-infrared) or surface inspection (standard vision), making it difficult to simultaneously monitor coating fluctuations inside substrates and accurately identify surface defects.

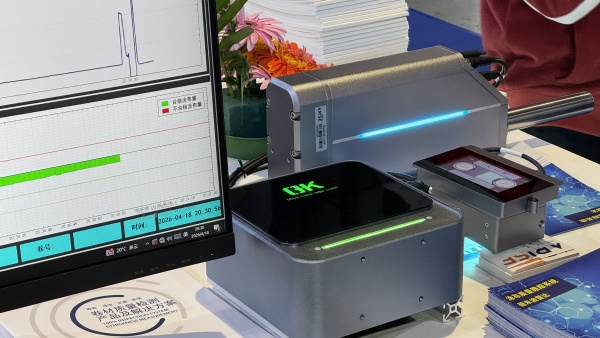

Chongqing ARISE CTS 3.0 Coating Quality Tracking System integrates a dual‑detection solution of microwave radar and vision inspection, addressing the shortcomings of traditional inspection technologies and delivering an all‑new quality control solution for the flexible packaging industry.

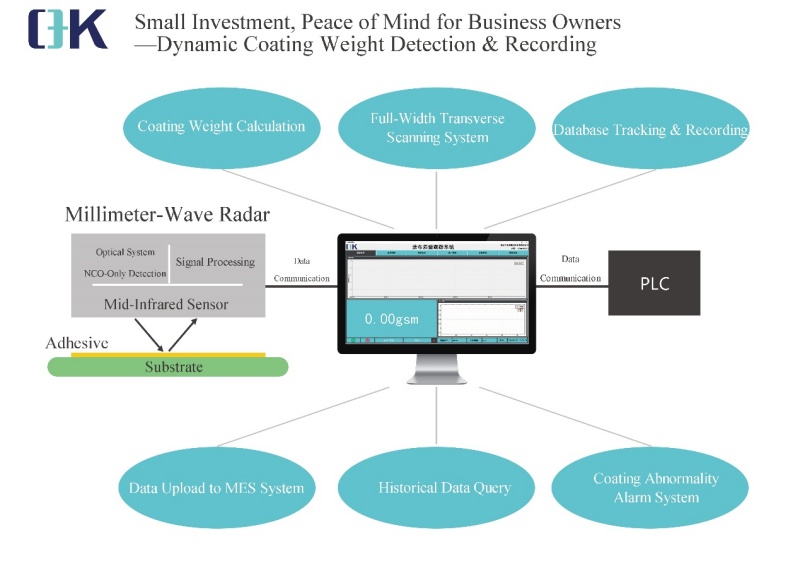

CTS 3.0 Dual-Detection System: Radar Vision Synergy for Both Internal Depth and Surface Inspection
1. Microwave Radar Module
- Penetrates substrates to accurately capture coating fluctuations.
- Penetrates substrates such as PET and printing ink to directly obtain coating weight data.
- Immune to interference from surface colors and printed patterns, truly reflecting adhesive layer thickness, areal density and coating weight.
- Real-time data acquisition enables precise identification of glue coating deviations at the 0.1 g/m² level.
2. Machine Vision Module
- Synchronous inspection for efficient surface defect identification
- Scans product surfaces simultaneously to detect appearance defects including thin coating, glue accumulation, uneven glue application, glue breakage and glue shortage.
- Cross verifies with radar data to eliminate information blind spots caused by single mode inspection.
3. Complementary Dual-Detection
- Synergistic Empowerment to Improve Overall Quality Control
- Radar alerts abnormal coating weight → Vision synchronously verifies associated surface defects;
- Vision detects appearance issues → Radar traces potential root causes of coating weight fluctuations;
- Dual-technology synergy enables real-time tracking of coating uniformity and simultaneous surface defect inspection, delivering quality control performance unattainable by single-technology solutions.
Multi-Scenario Adaptability Covering Mainstream Industry Requirements
- Dry bond Laminator: Realizes simultaneous monitoring of coating weight fluctuations and inspection of appearance defects.
- Solvent-free Laminator: Adapts to eco-friendly production lines, providing high-precision zero-radiation
- Flexographic Laminator: Synchronously controls registration accuracy and coating quality.
- Industries of Film, Adhesive Tape, Lithium Battery, Printing & Packaging: Compatible with cross-industry whole-line integration requirements.
The CTS 3.0 Coating Quality Tracking System upgrades the coating quality control system through innovative dual-detection technology, empowering high-quality development of the industry.
