Which Web Guiding System is Most Suitable for Paper, Film, and Foil Processing in India
What is a web guiding system?
A web guiding system is used to automatically maintain the lateral alignment of a moving web during production. It consists of three core components: a sensor that detects the material’s position, a controller that calculates the deviation from the target, and an actuator that drives the mechanism to correct the offset.
For paper, film, and foil production lines, web misalignment can lead to uneven winding, edge waste, inaccurate slitting, printing defects, and frequent machine stoppages. Choosing the right web guide system directly determines production efficiency and product yield.
Table of Contents
What web misalignment challenges does paper, film, and foil processing face in India?

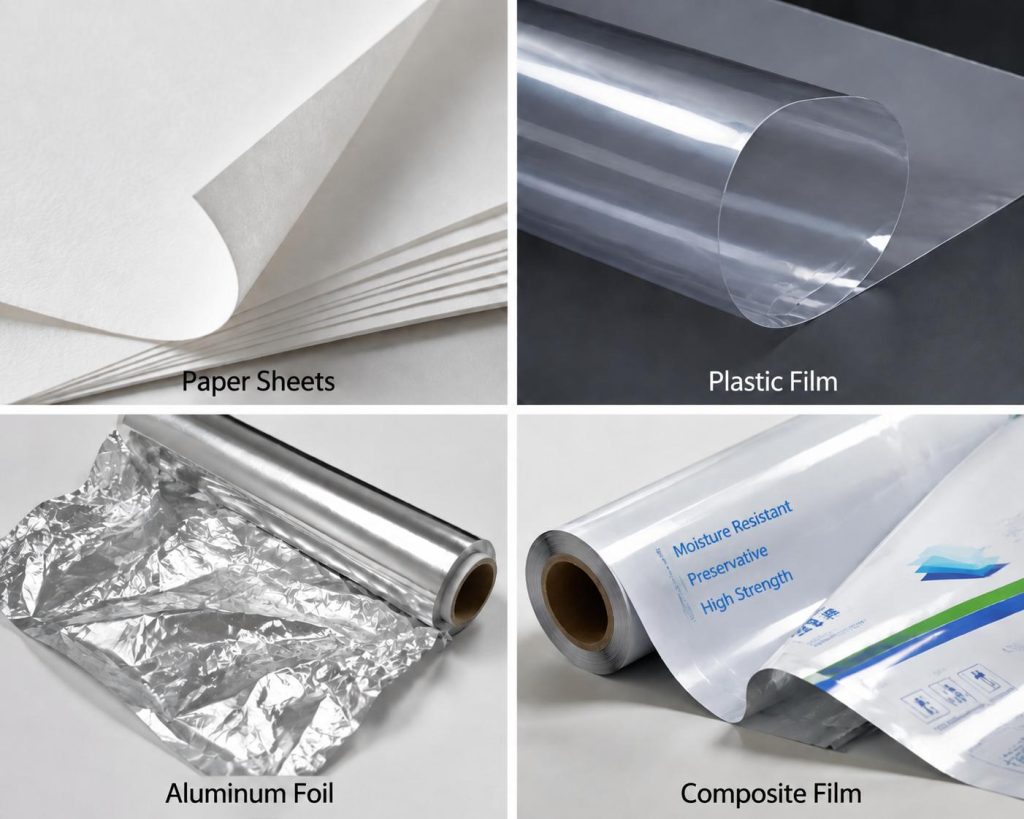

- Diverse materials: paper, film, aluminum foil, and laminated films have varying requirements for sensors; transparent films need ultrasonic, while mesh materials are suitable for infrared.
- High-speed production lines: as equipment speed increases, the web guiding system is required to have fast response capability.
- High temperature and high humidity environments: in some regions, the climate is hot, and oven conditions demand high heat resistance from the equipment.
- Electrostatic and electromagnetic interference: static electricity up to 30,000 volts and interference from variable frequency drives are often present on site, so sensors must have strong anti-interference capability.
What web guiding and quality control solutions does Arise offer?
Chongqing Arise Technology Co., Ltd. has been deeply rooted in the web control industry for 25 years. As a national high-tech enterprise integrating optics, mechatronics, electronics, and the Internet, we specialize in the R&D, production, sales, and service of web guiding systems, tension control systems, width measurement systems, thickness measurement systems, and vision inspection systems.
To address the specific needs of the paper, film, and foil processing industry in India, the following four products have proven to be effective solutions:
S800 Servo Web Guide Controller:
Full touch screen, supports ultrasonic, infrared, and CCD sensors, suitable for unwinding, rewinding, and intermediate guiding, ideal for multi-material high-precision production lines.
S600 Servo Web Guide Controller:
64-bit dual-core processor, fast response, button operation, intuitive ring-type deviation display, suitable for production lines that prioritize stability and ease of operation.
W500 All-in-One Web Guide System:
Integrated design for easy installation. Supports three working methods: following the edge, following the line, and centering. The correction speed automatically matches the material speed, making it suitable for compact production lines such as labels and films.
It uses a 5MP/10MP area-array CMOS camera for image capture, and the image can be magnified up to 25 times with clear and sharp details.
The system freezes high-speed moving images into a static view and allows local magnification to enable timely detection of tiny printing defects. It supports split-screen sample comparison – displaying archived qualified reference patterns on one side and live real-time footage on the other, making register errors and color differences visually apparent.
Applicable scenarios:Â narrow-web label presses, small flexographic printers, laminators, and other small to medium production lines with limited installation space.
Key advantages: real-time inspection of web defects without stopping the machine; interconnectable with Arise web guiding, tension control, and vision inspection systems for full-line data exchange.
Real Case in India
A label printing equipment manufacturer in Ahmedabad, India, had long been facing challenges with web misalignment and quality control. After evaluation, they selected:
S800 Servo Web Guide Controller × 100 sets
S600 Web Guide Controller × 10 sets
W500 All-in-One Web Guide System × 7 sets

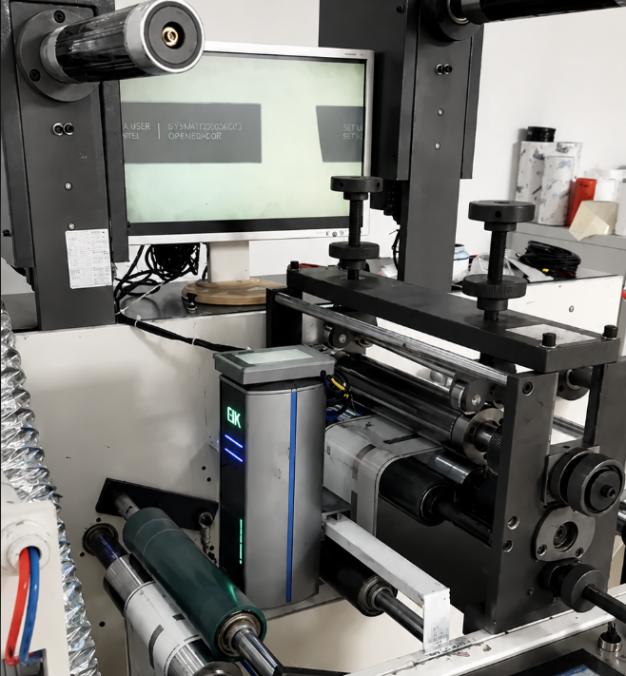

OR-B Web Monitoring System × 1 set
This combination covers the entire process from web guiding to quality inspection, significantly improving production line stability and yield.
Frequently Asked Questions (FAQ)
Q1: Can the web guiding system handle transparent films?
Yes. Arise’s A200 ultrasonic sensor is specifically designed for edge detection of transparent and ultra-transparent materials, and is also equipped with anti-static and anti-VFD interference capabilities.
Q2: What is the maximum line speed that the OR-B Web Monitoring System can handle?
The maximum speed is 1200 m/min, which meets the requirements of most printing, laminating, and slitting production lines.
Q3: How to choose a sensor for different materials?
| Material / Working Condition | Recommended Sensor |
| Transparent film, ultra-transparent material | Ultrasonic (A200) |
| Mesh materials (non-woven fabric, gauze, etc.) | Infrared (A100) |
| High-temperature environment (oven outlet, etc.) | High-temperature fiber optic (A300/A300F, up to 350°C) |
| Pattern tracking, printed marks, feature markers | CCD image sensor (A400/A600) |
